Marke: Waveshare
Variante: High-Precision AD HAT
Eigenschaften:

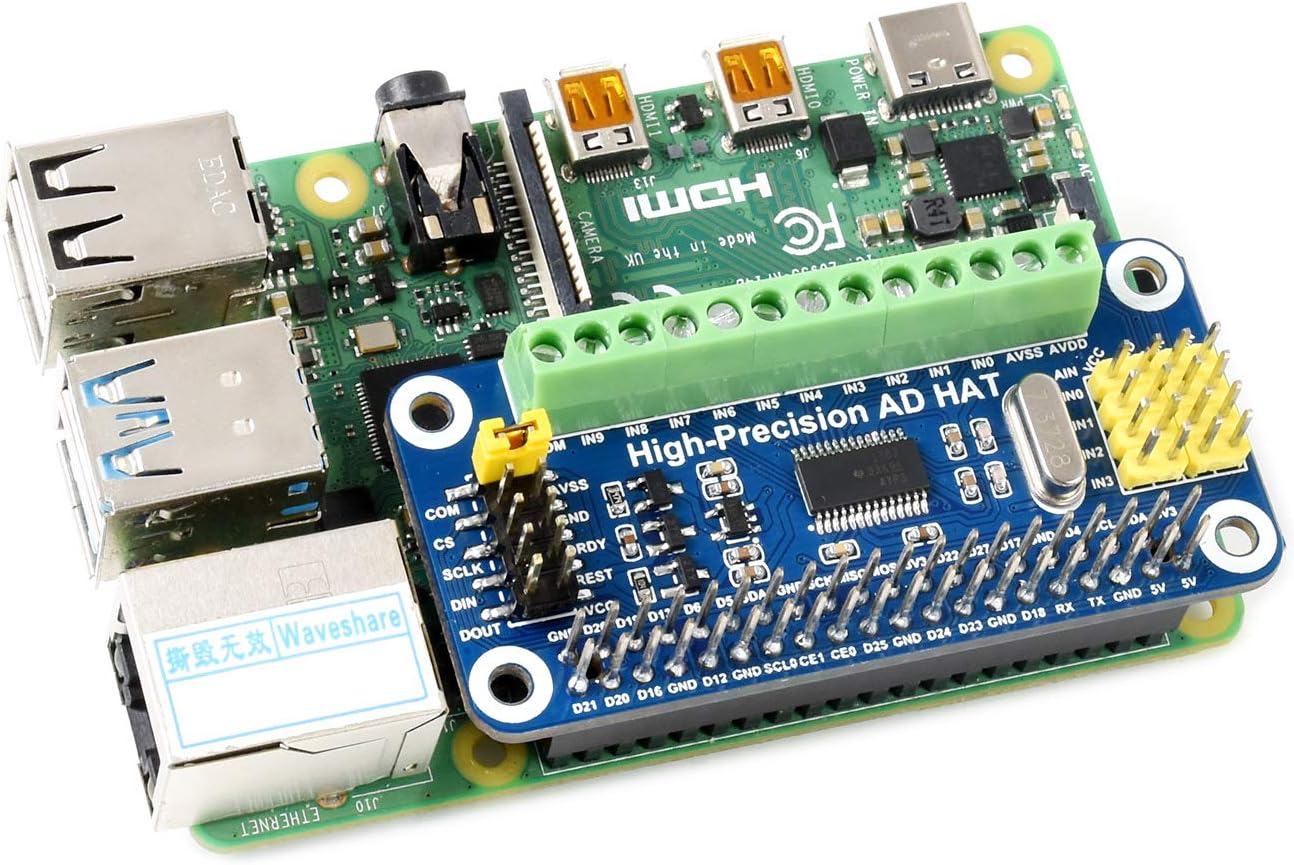

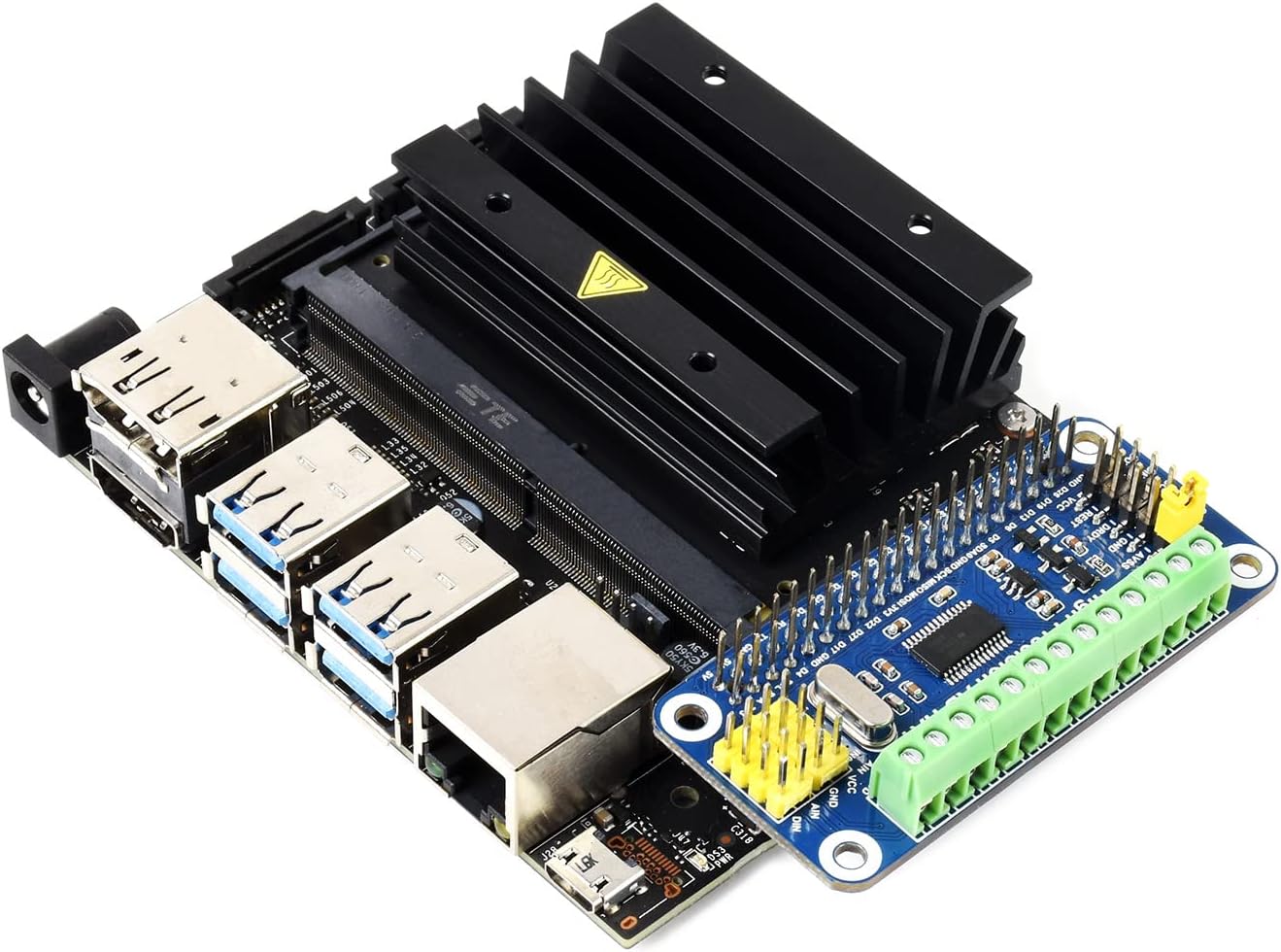

- Compatible With Raspberry Pi Series And Jetson Nano
- Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x

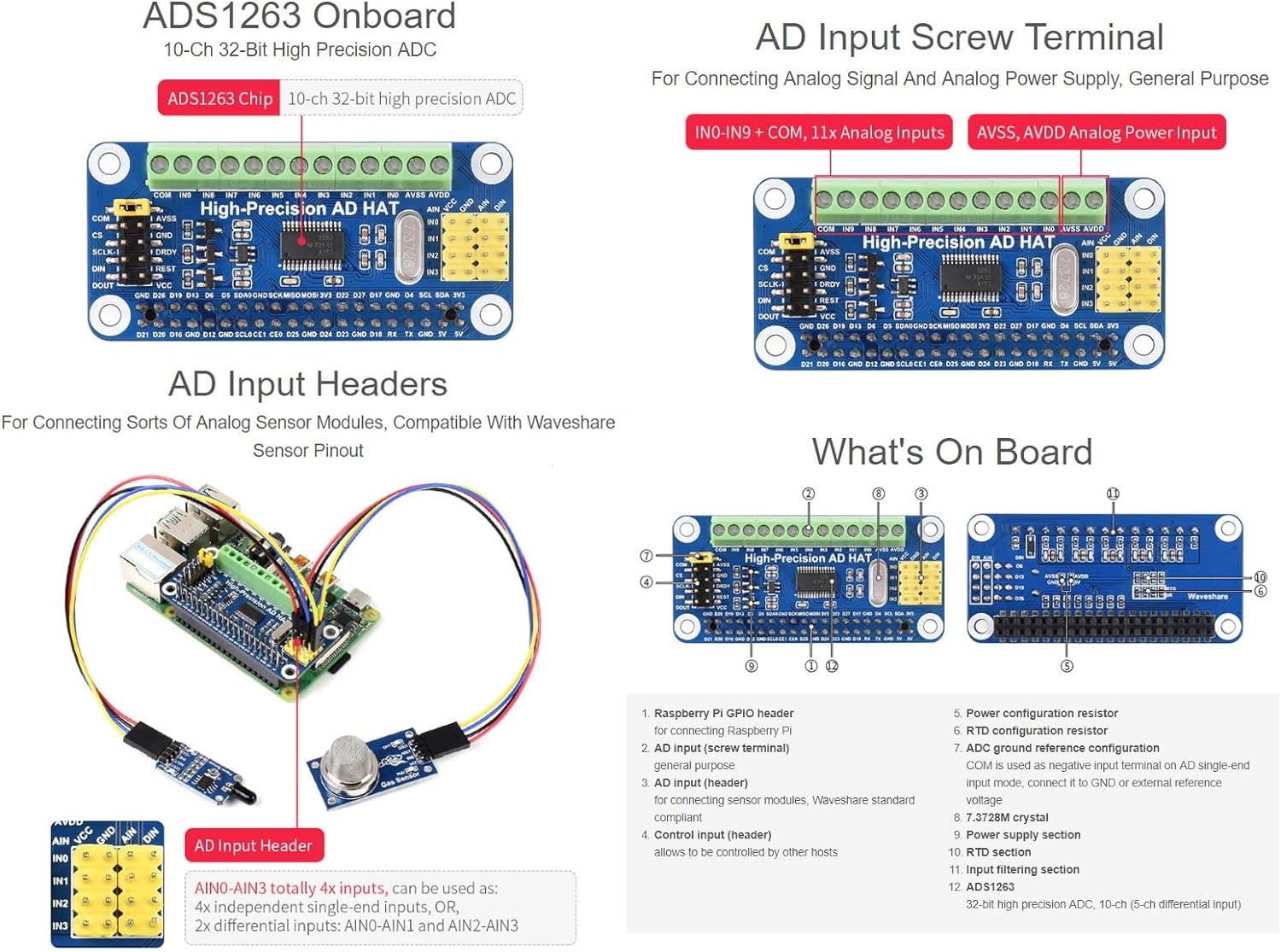

- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
- Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi;Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
Der Artikel ist innerhalb weniger Tage lieferbar, die Lieferzeit beträgt hierbei 3-5 Werktage.
Die Ware wird kostenlos mit der Schweizerischen Post oder DPD versendet.
Rückgabe von Ware gemäss AGB
- Kostenlose Retouren innert 14 Tagen nach Erhalt
- Die Gutschrift erfolgt zu 100% der Kaufsumme
- zu Einzelheiten siehe Ziffer 8.0 und Ziffer 8.1. der AGB
