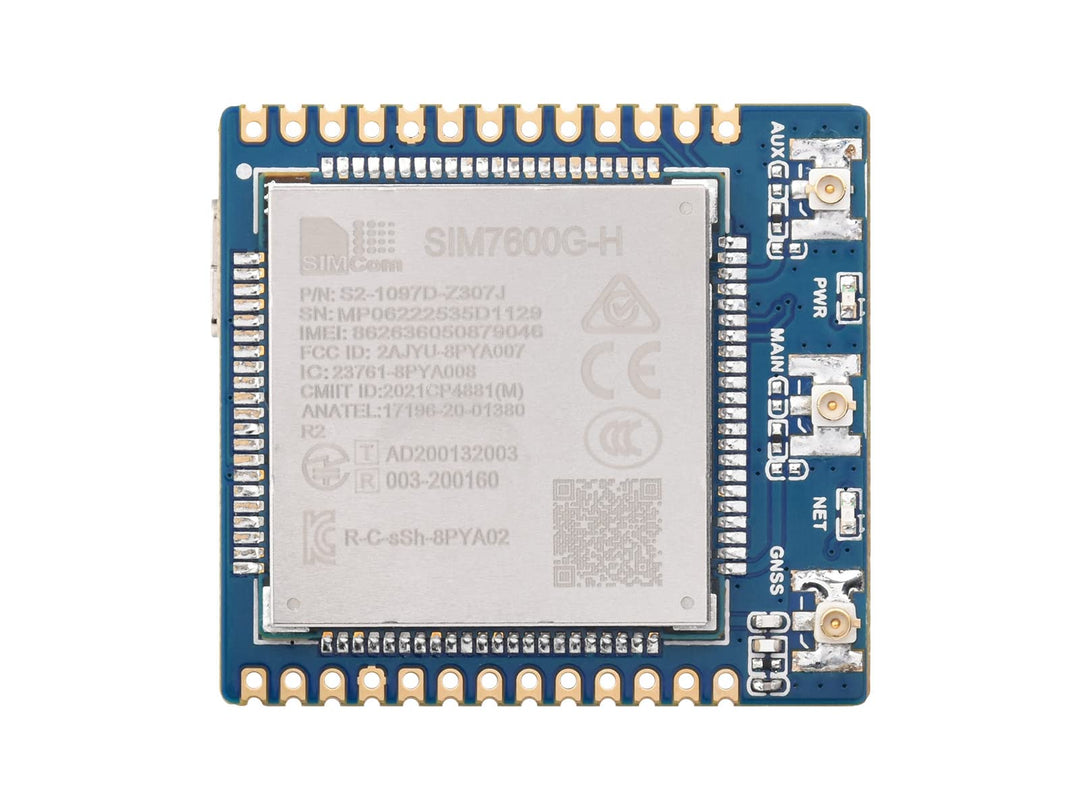

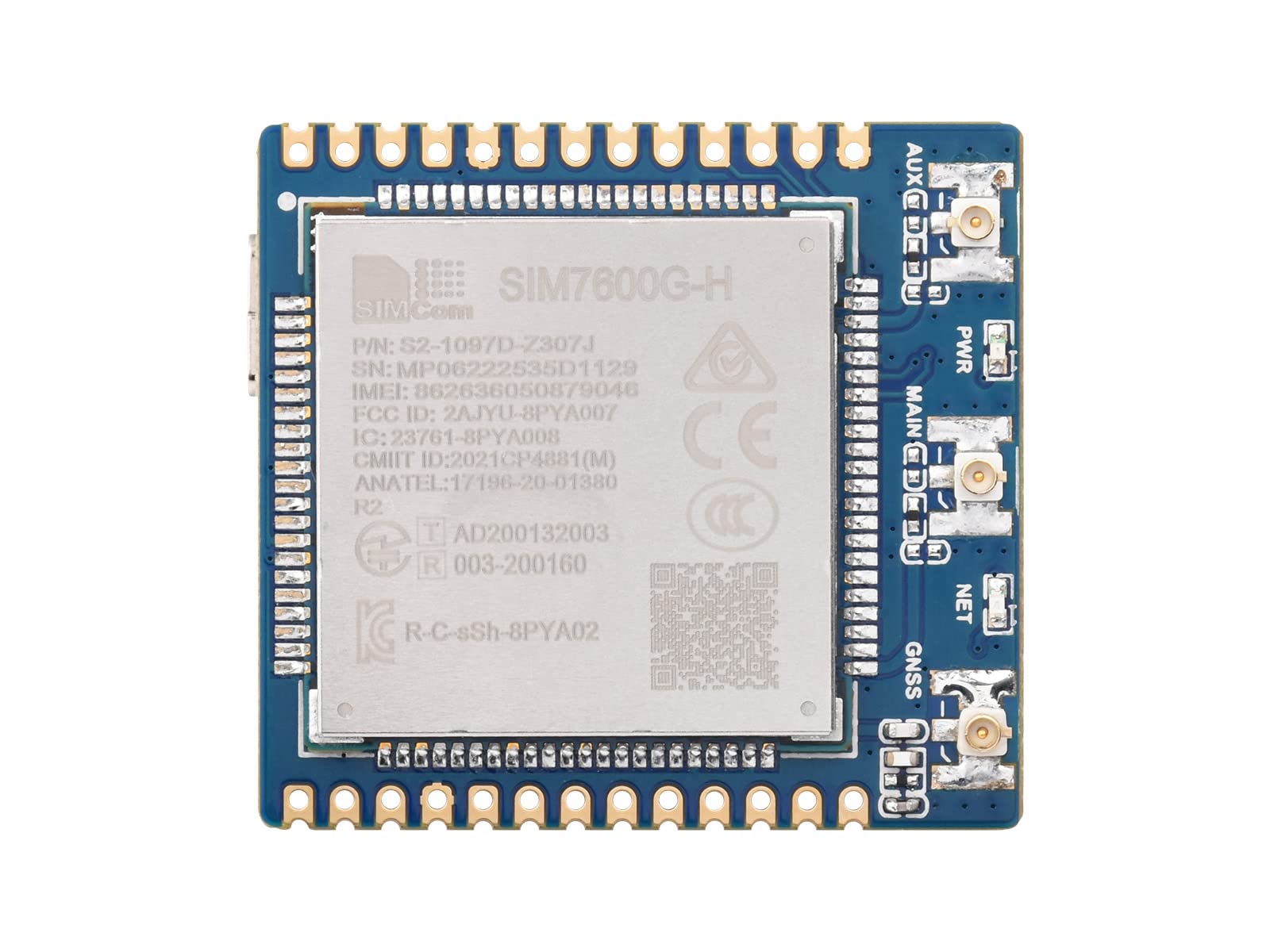

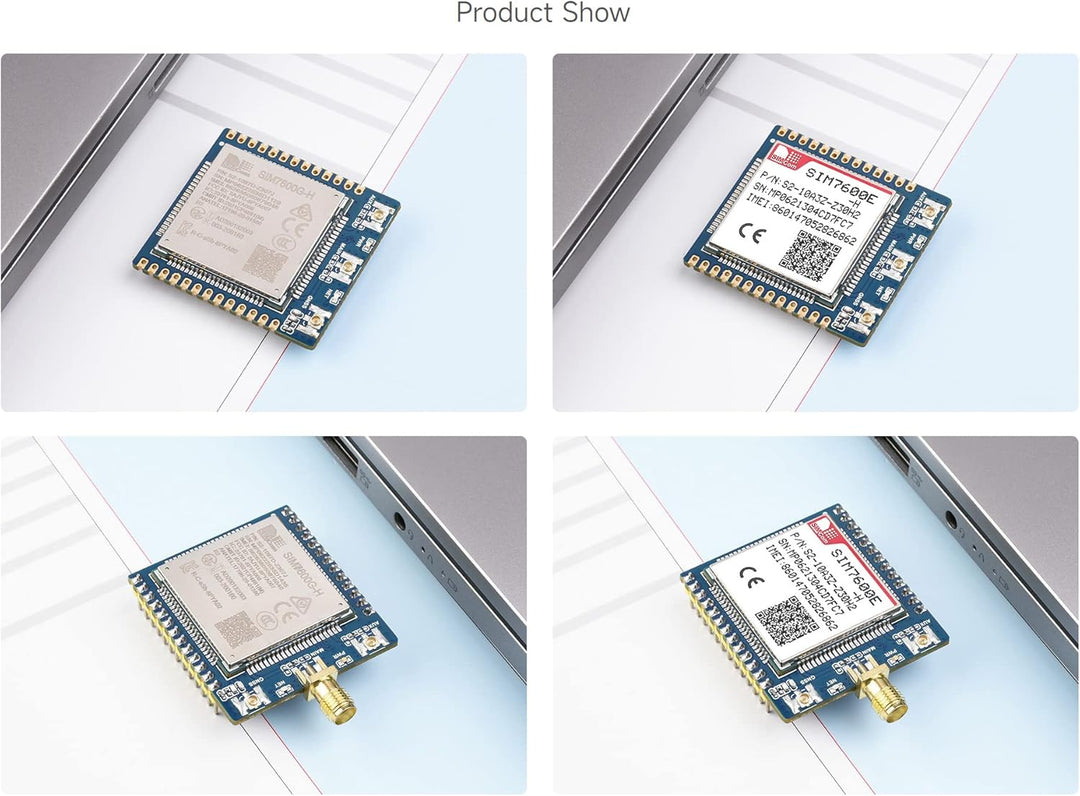

Waveshare SIM7600G-H 4G-Module, Support GNSS Positioning/4G/3G/2G, Support Windows/Linux Dial-up Int

Marke: Waveshare

Eigenschaften:

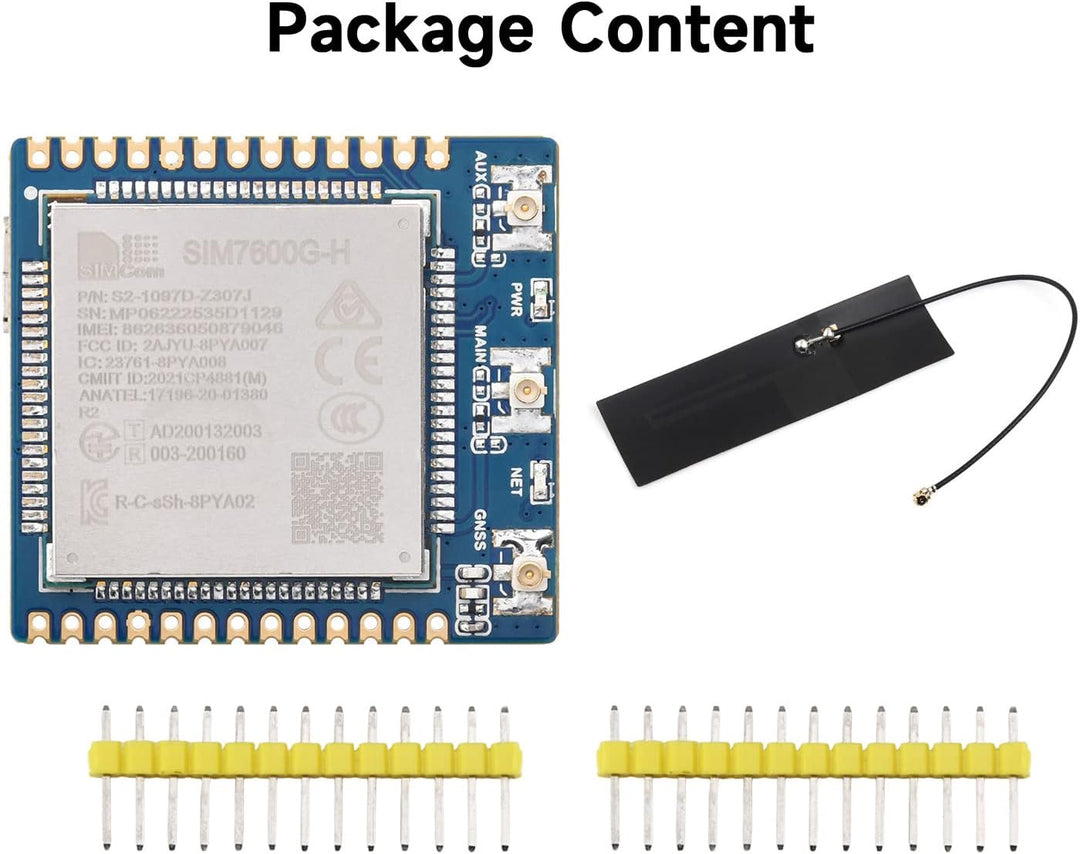

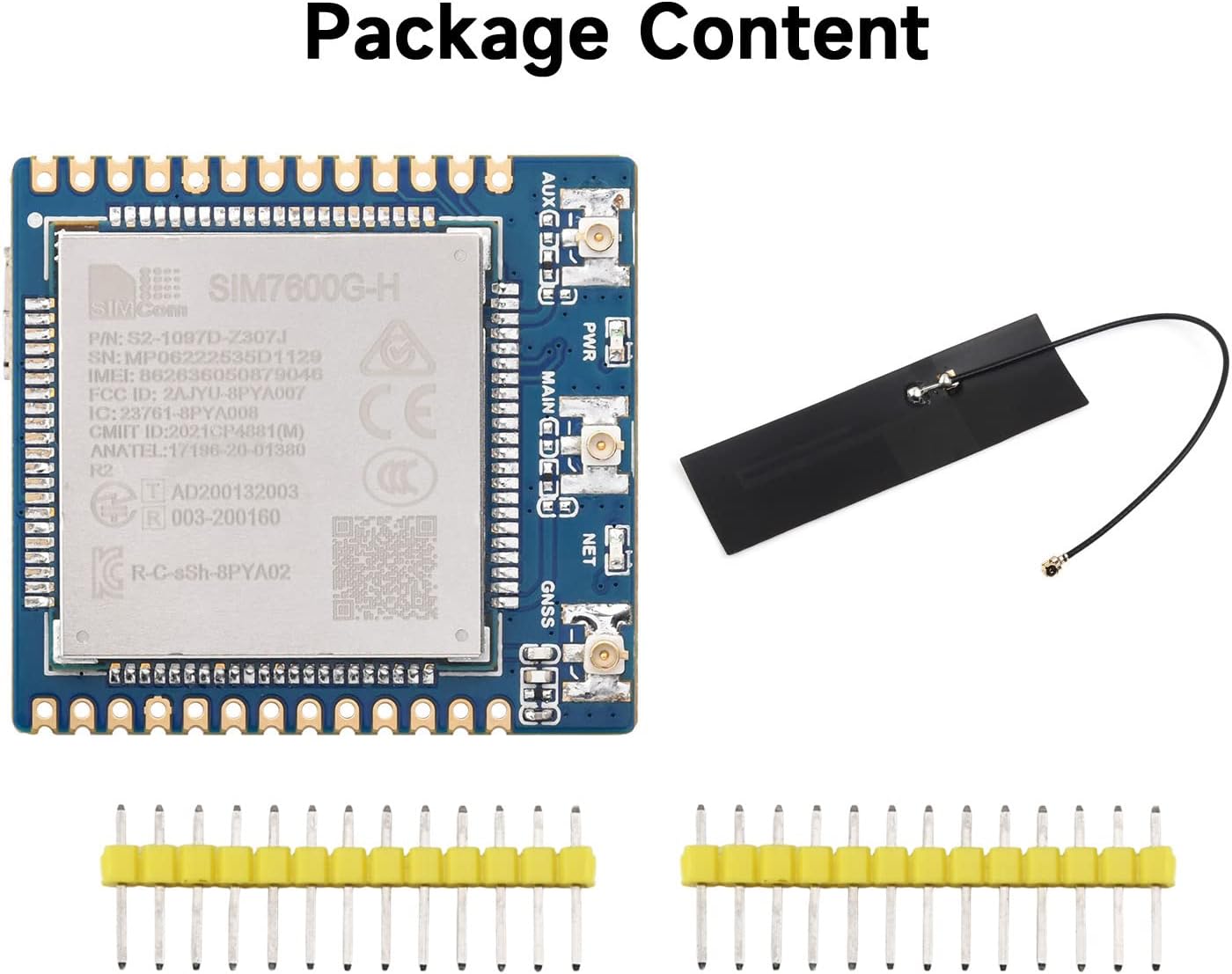

• Typical application: Used for Medical and health, smart payment, public network intercom, environmental monitoring, energy monitoring, fleet management, smart industry, smart agriculture. With 3× IPEX antenna connector, comes with 2× yellow pin header
• Compatible with 2G/3G/4G network with global support. Supports dial-up, telephone calls, SMS/TCP/UDP/MQTT/DTMF/HTTP/FTP, etc. Supports GPS/BeiDou/Glonass/GALILEO/QZSS/LBS base station positioning. Onboard USB and UART interface, for dial-up Internet

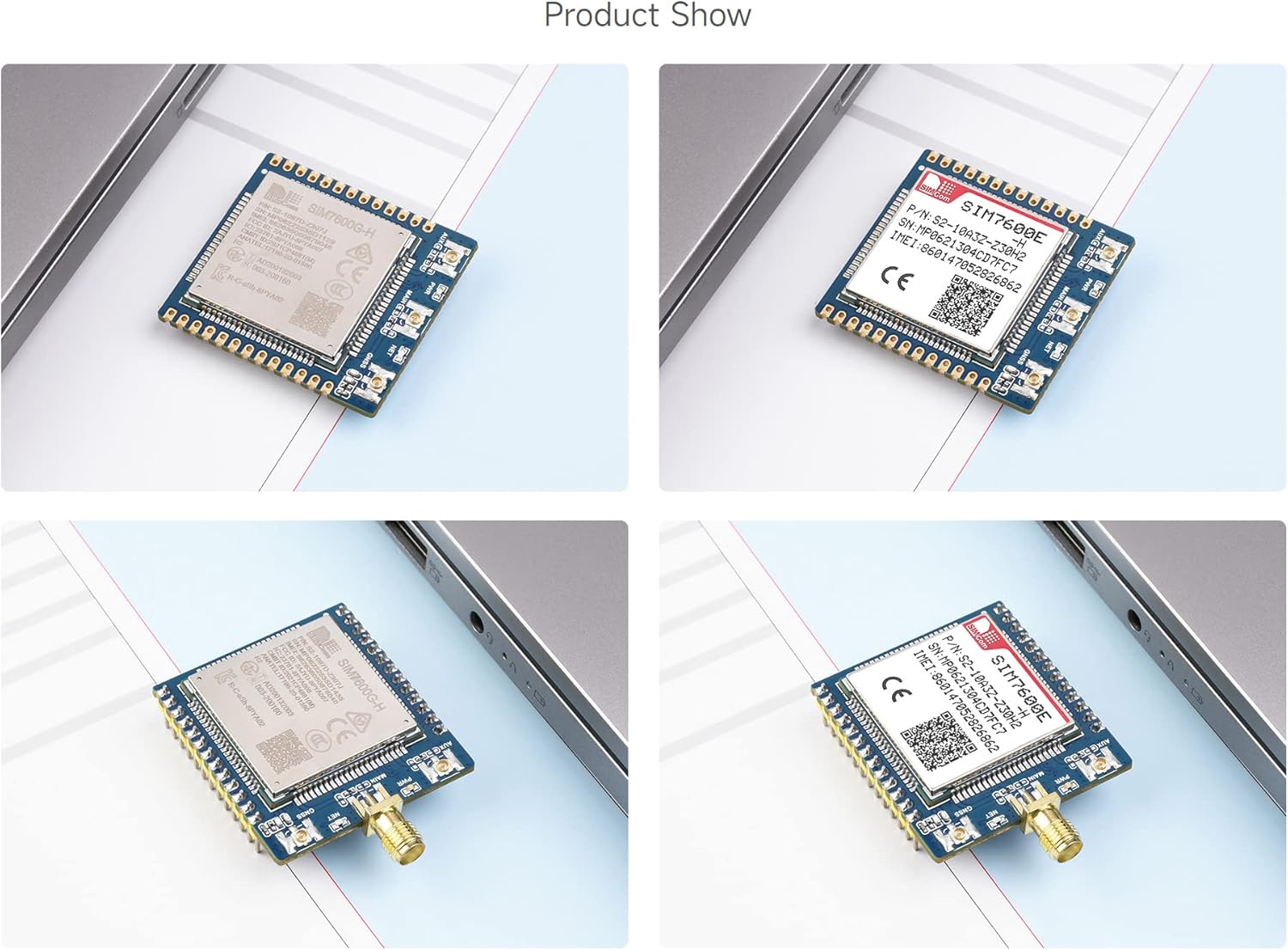

• Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header. Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility. Built-in

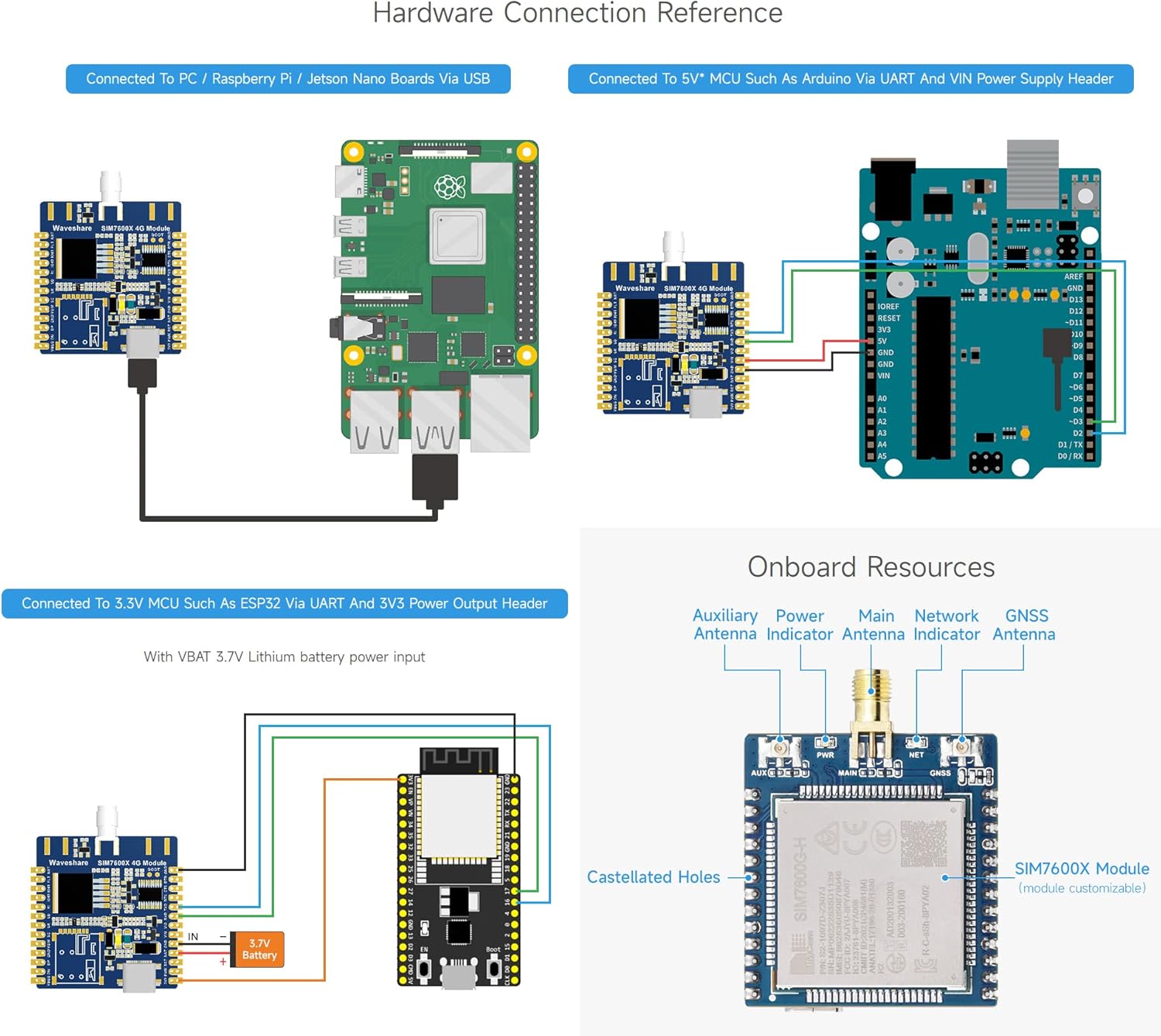

• Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery). Supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous
• Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card. Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
