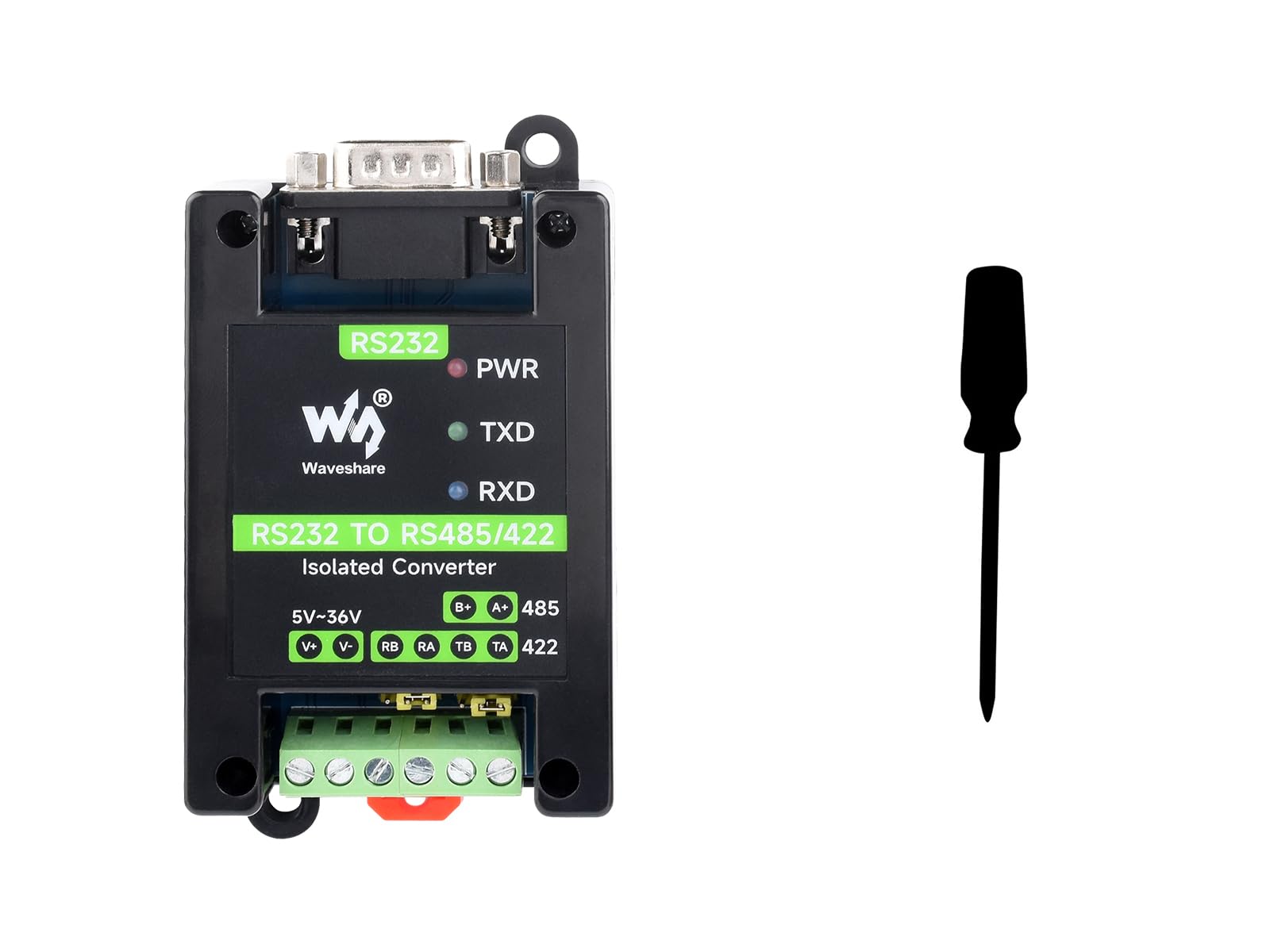

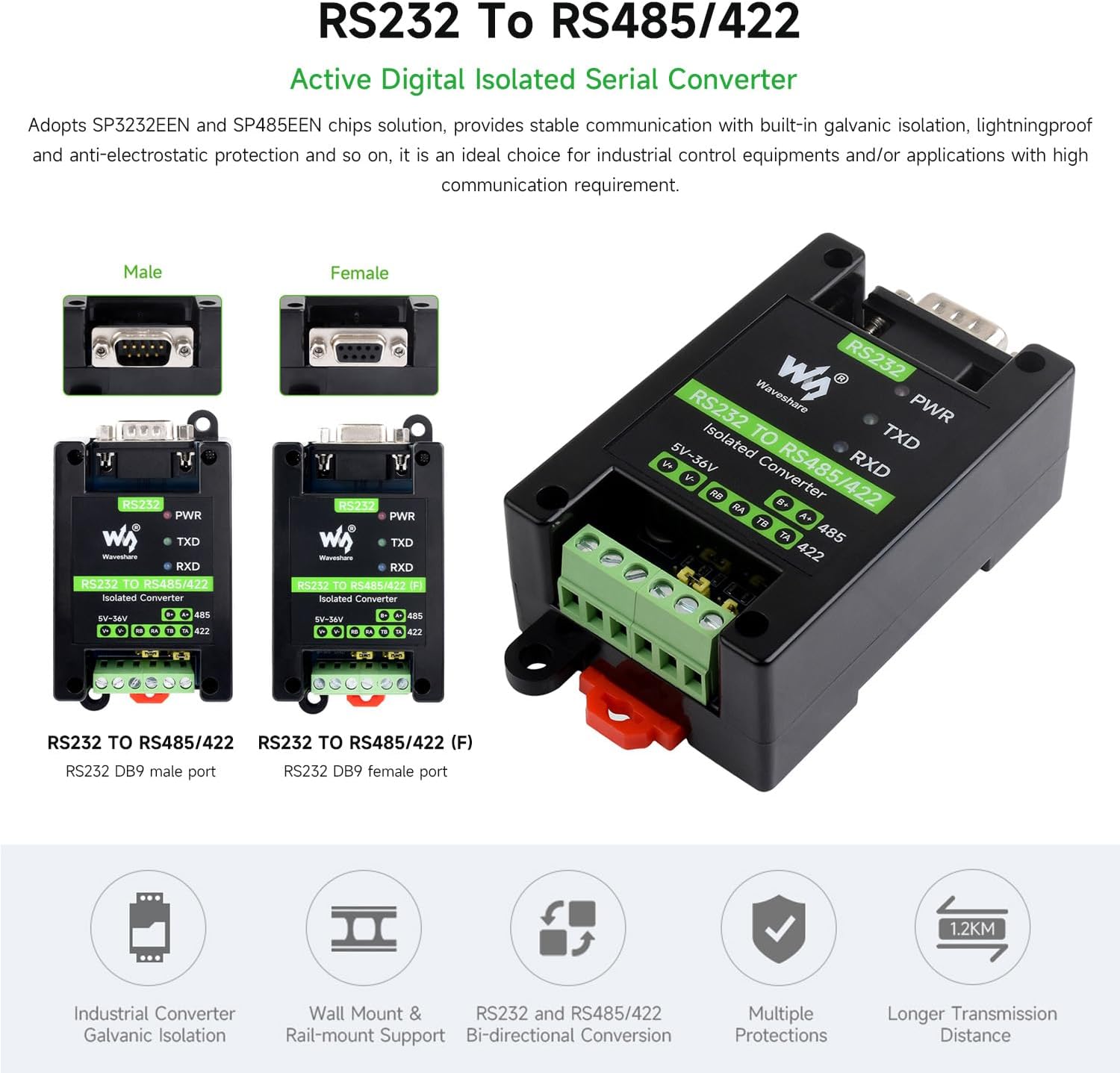

Waveshare RS232 To RS485/422 Active Digital Isolated Converter Onboard Original SP3232EEN&SP485EEN C

Marke: Waveshare

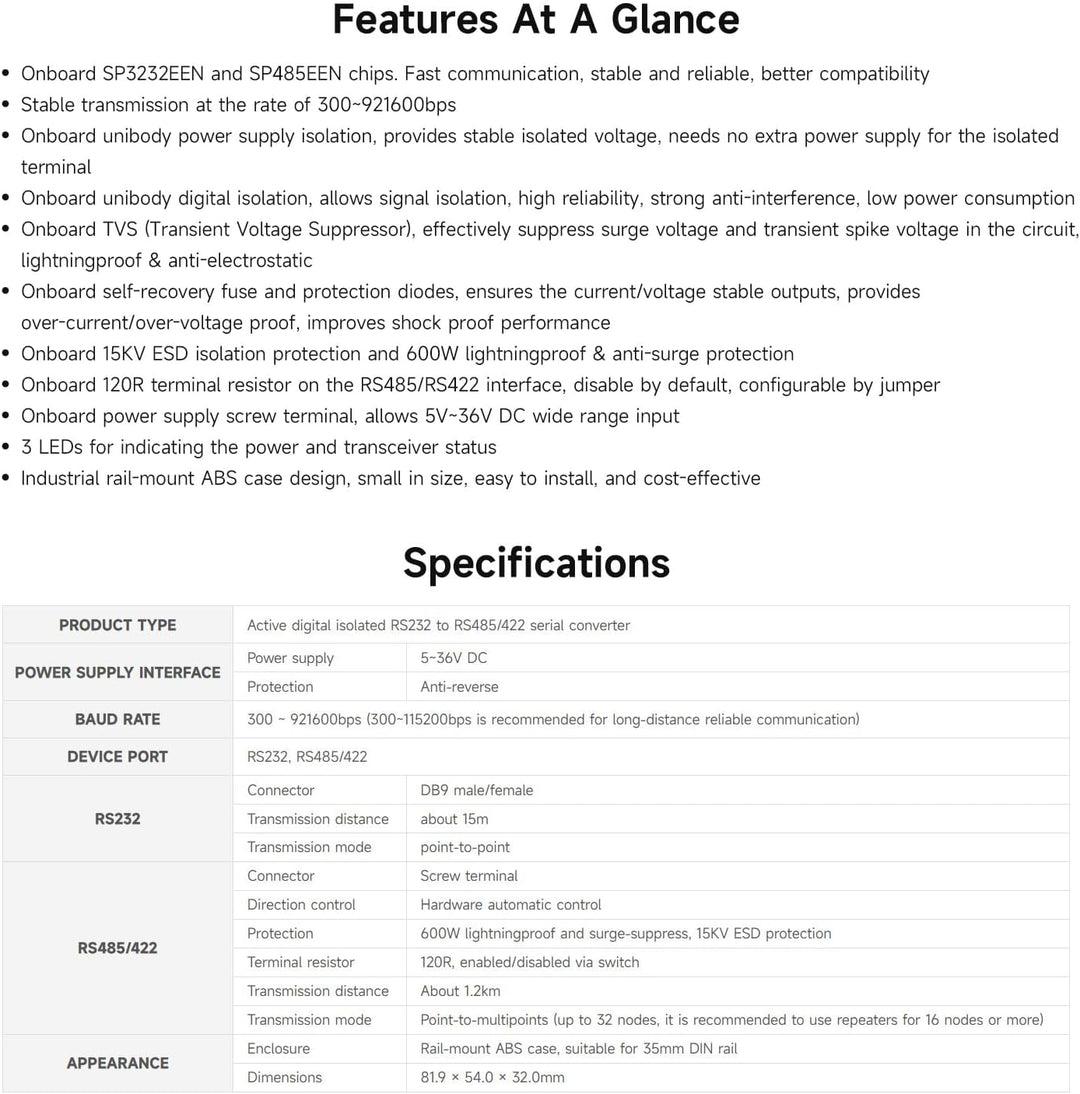

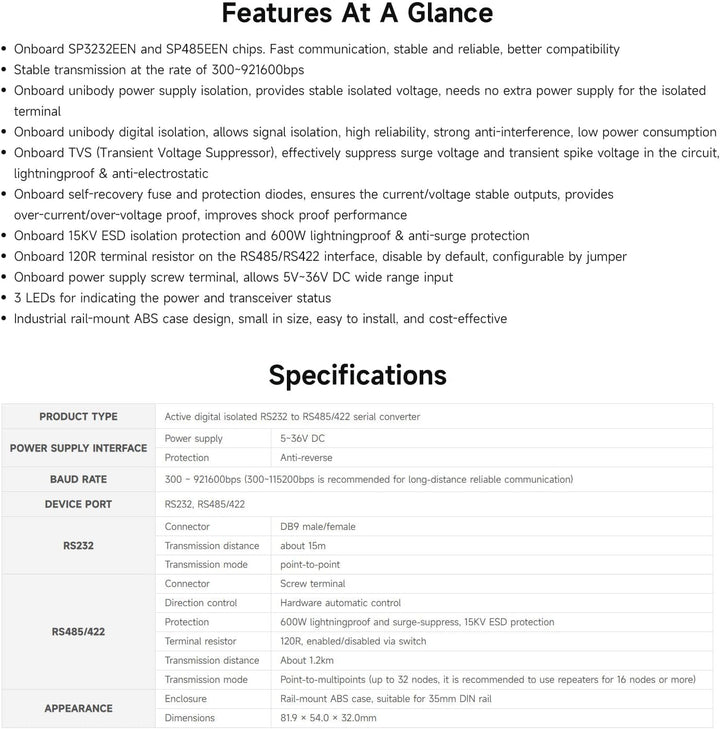

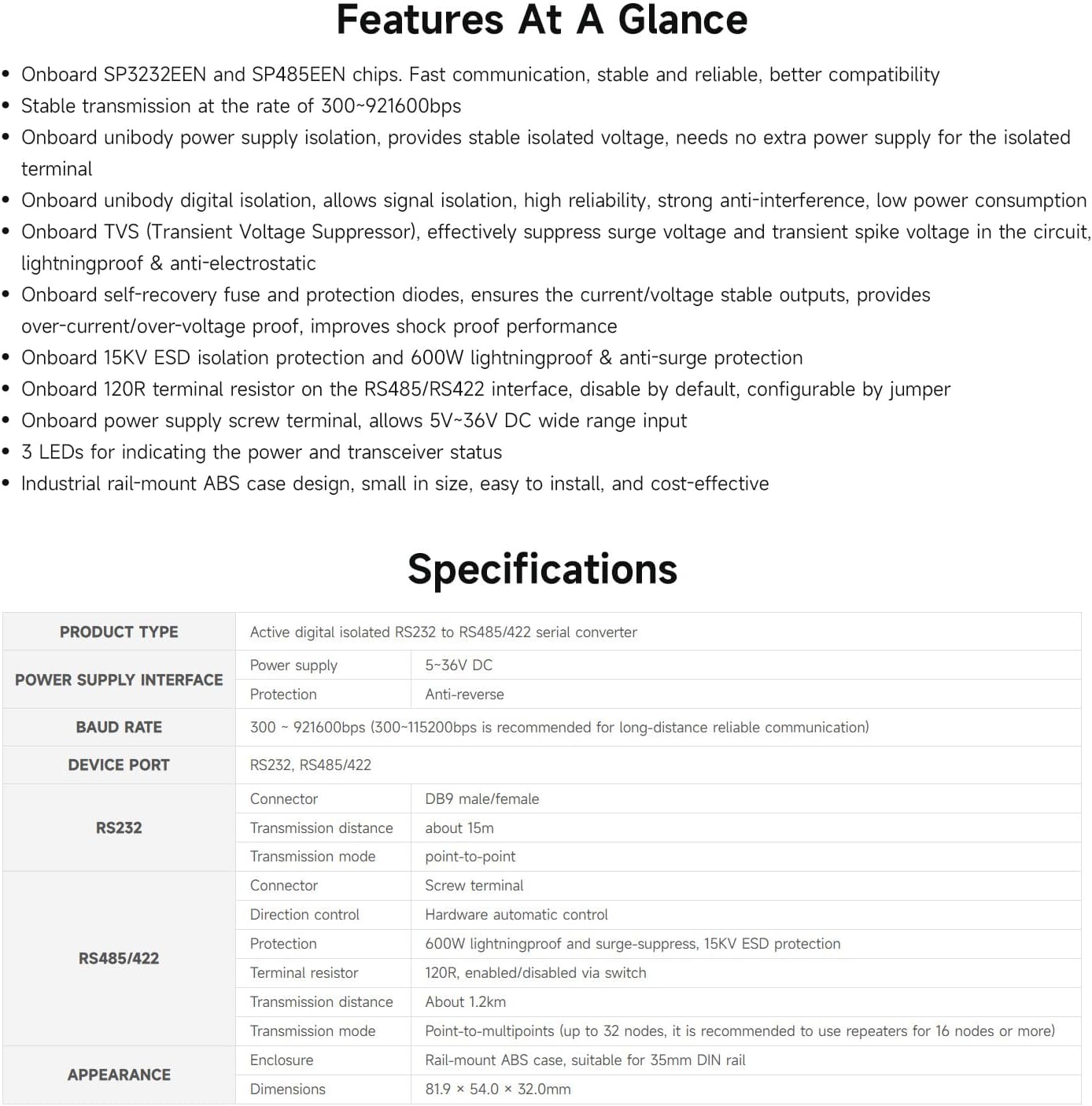

Eigenschaften:

• RS232 DB9 male port. Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility. Stable transmission at the rate of 300~921600bps

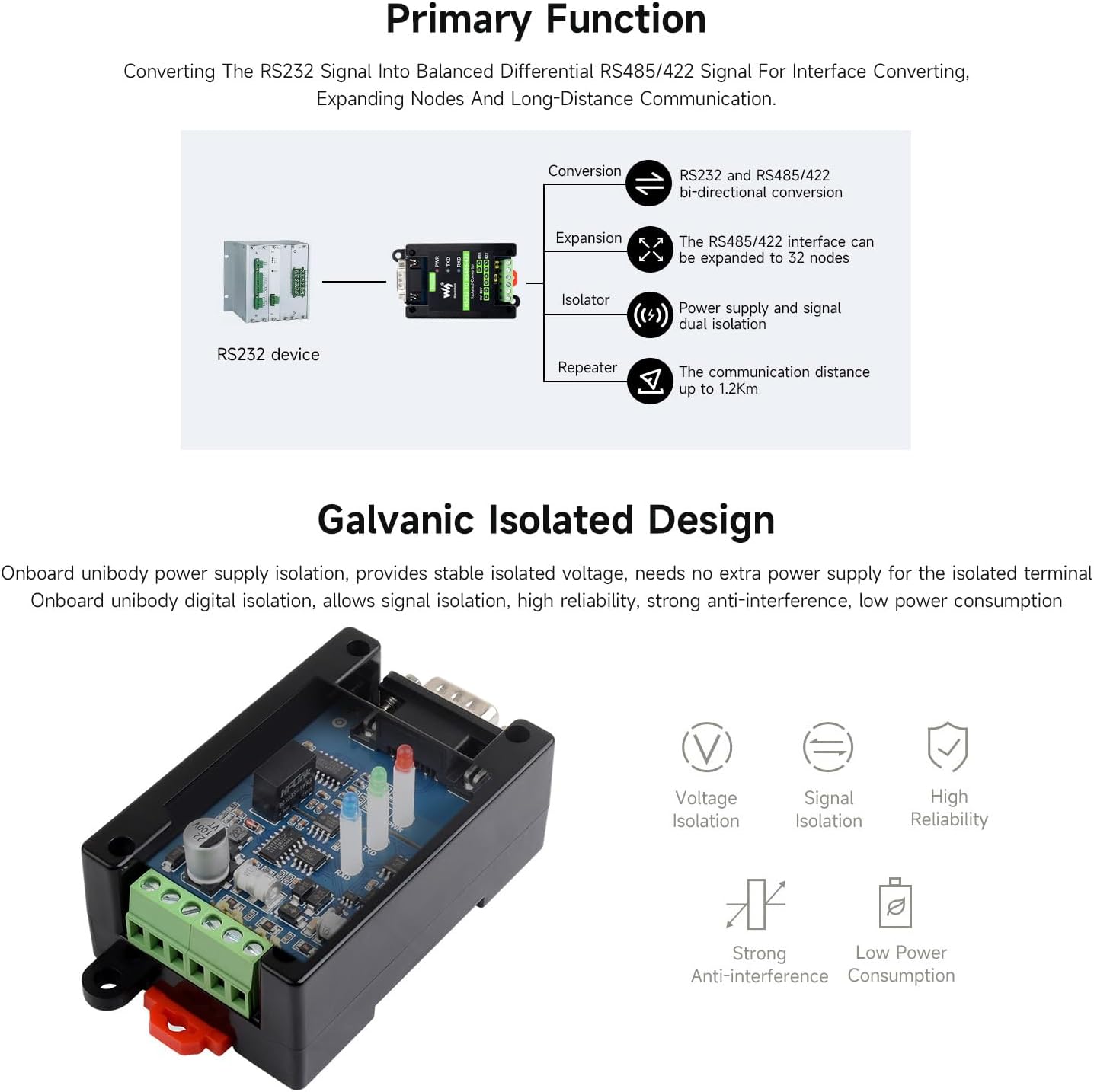

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

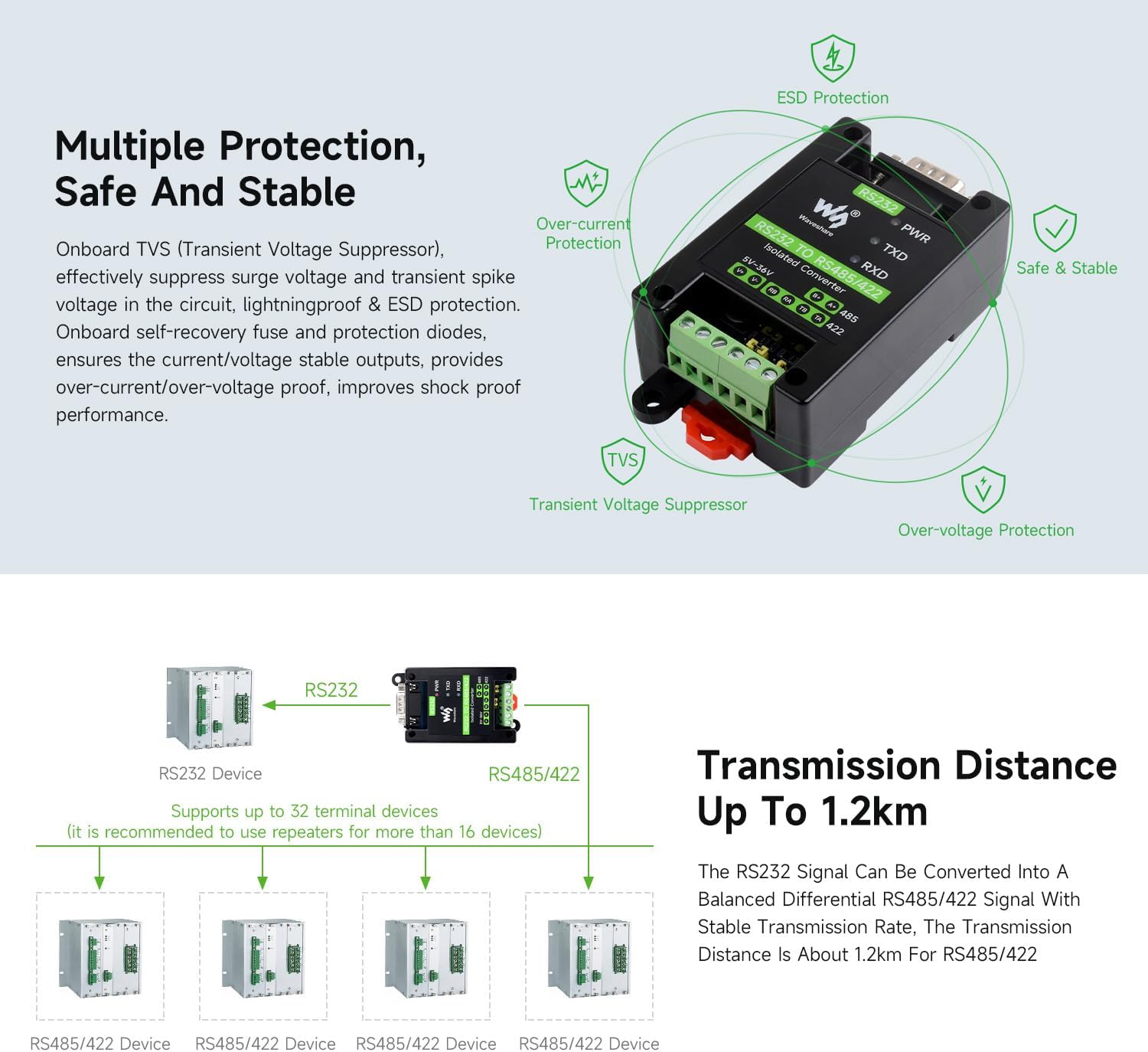

• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs,
• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection. Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper. Onboard power supply screw terminal, allows 5V~36V DC wide

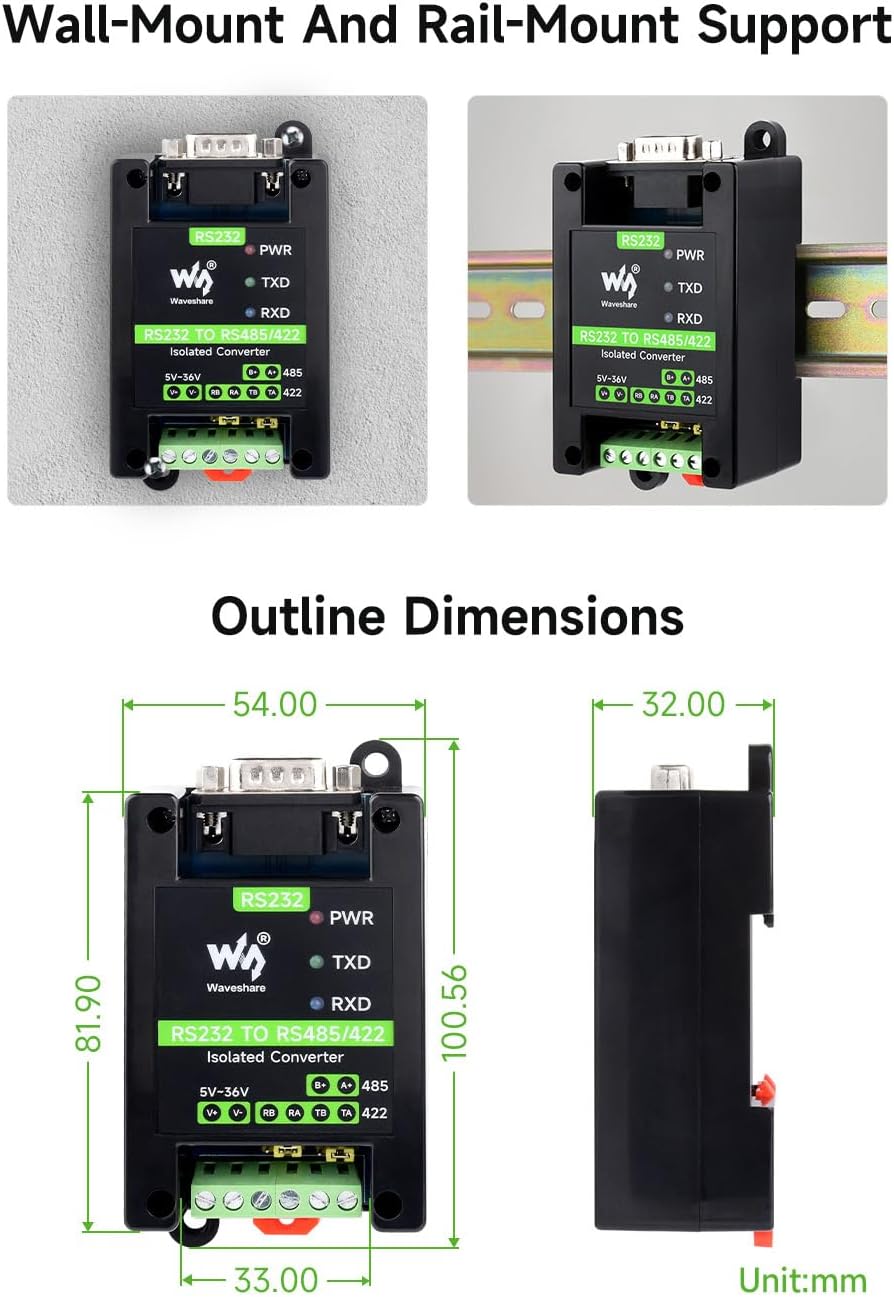

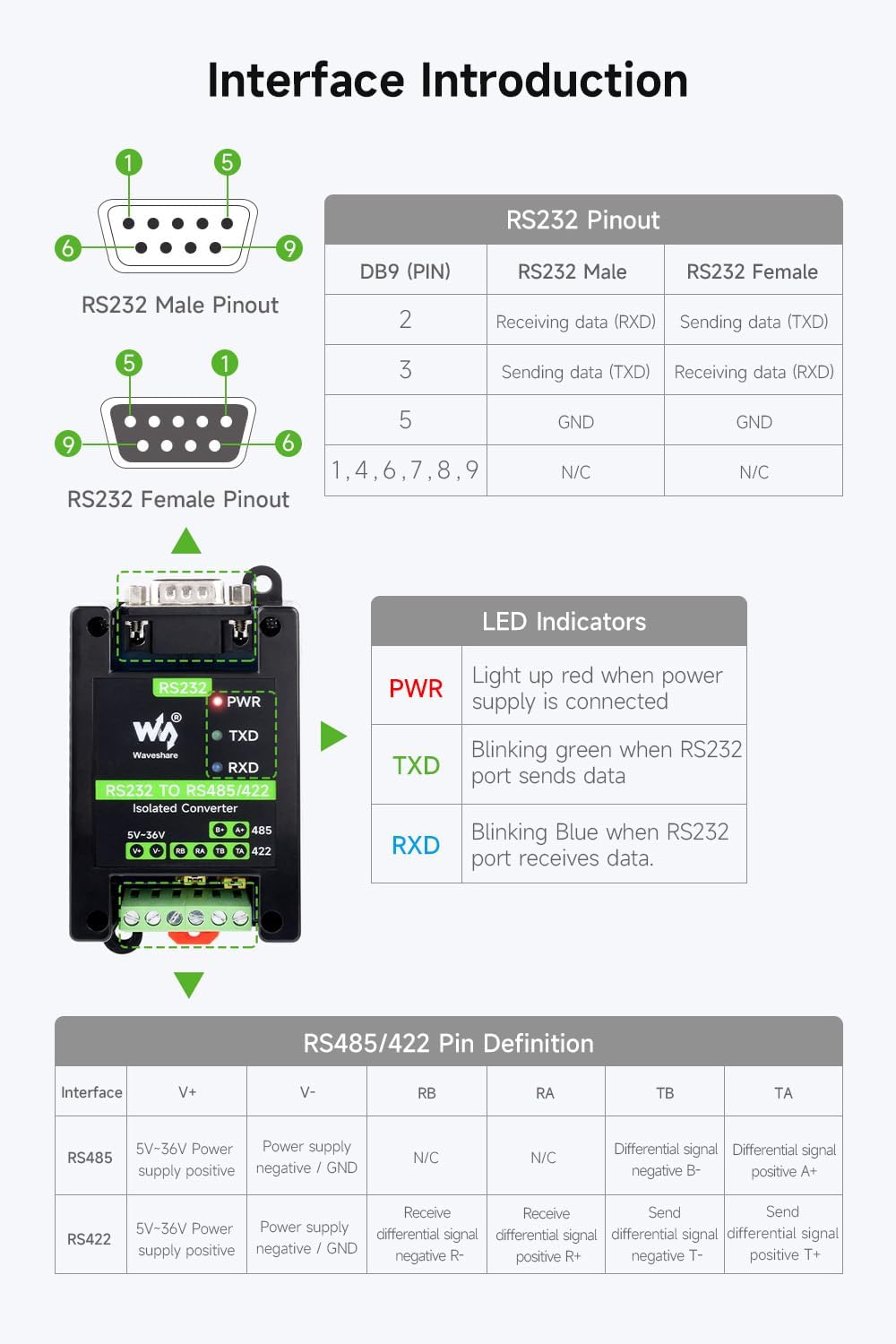

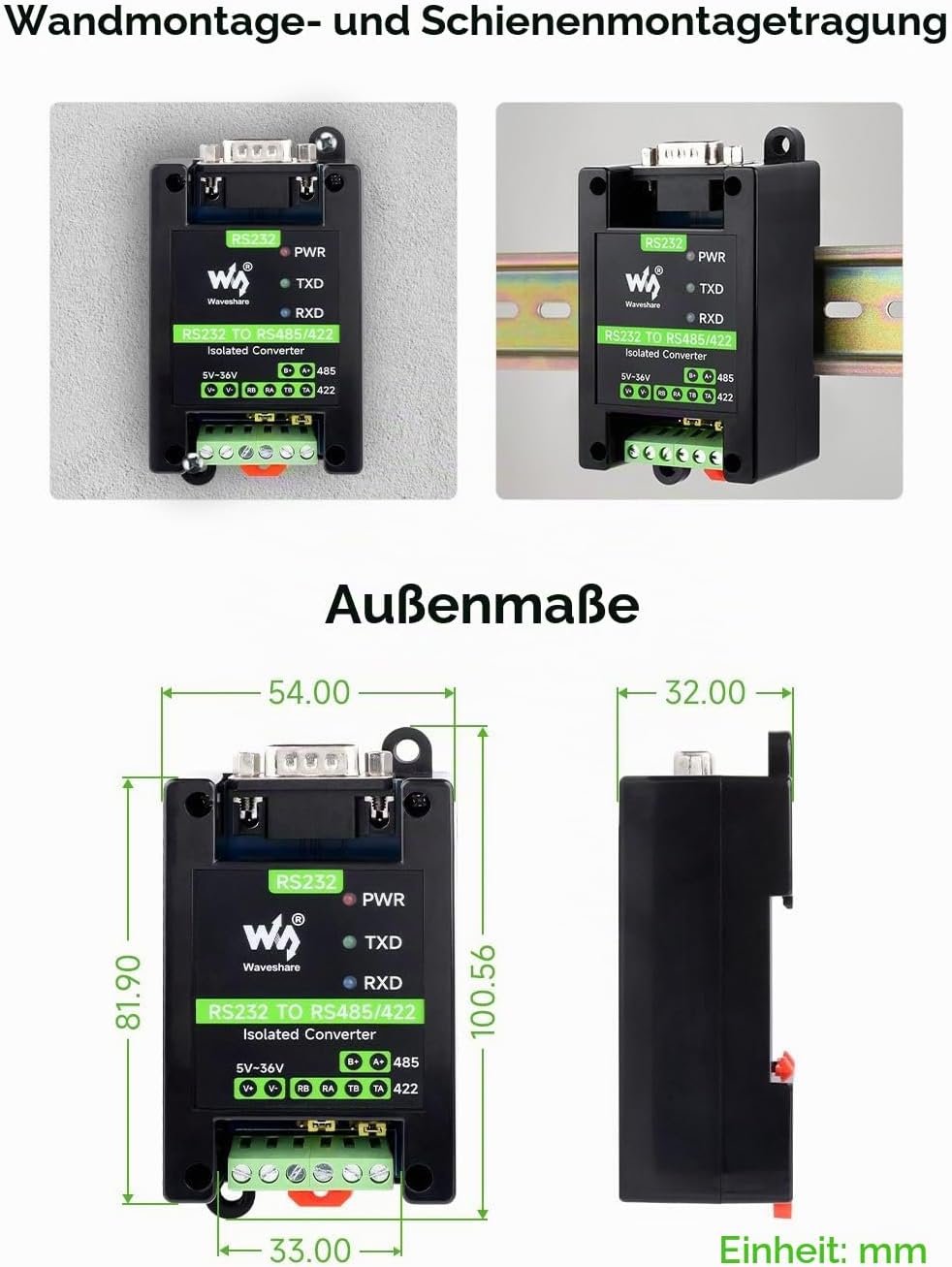

• 3 LEDs for indicating the power and transceiver status. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
