Marke: Waveshare
Eigenschaften:

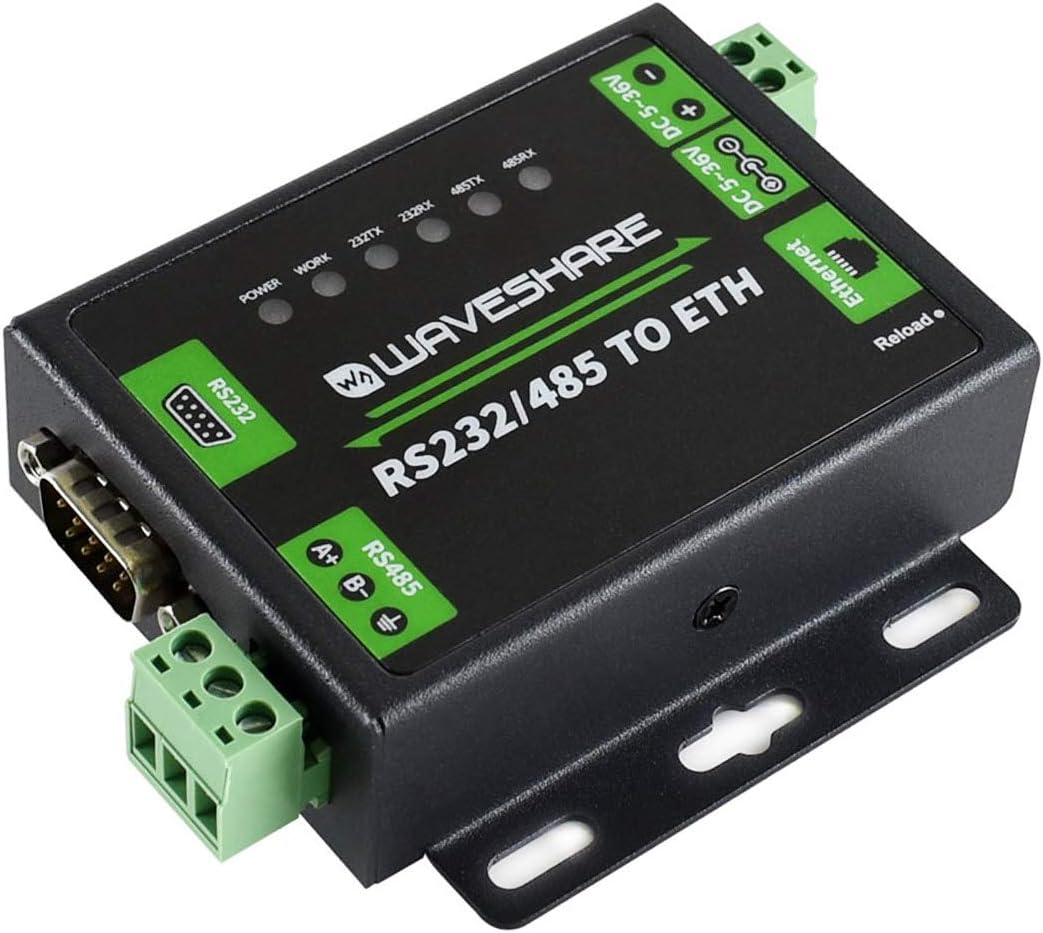

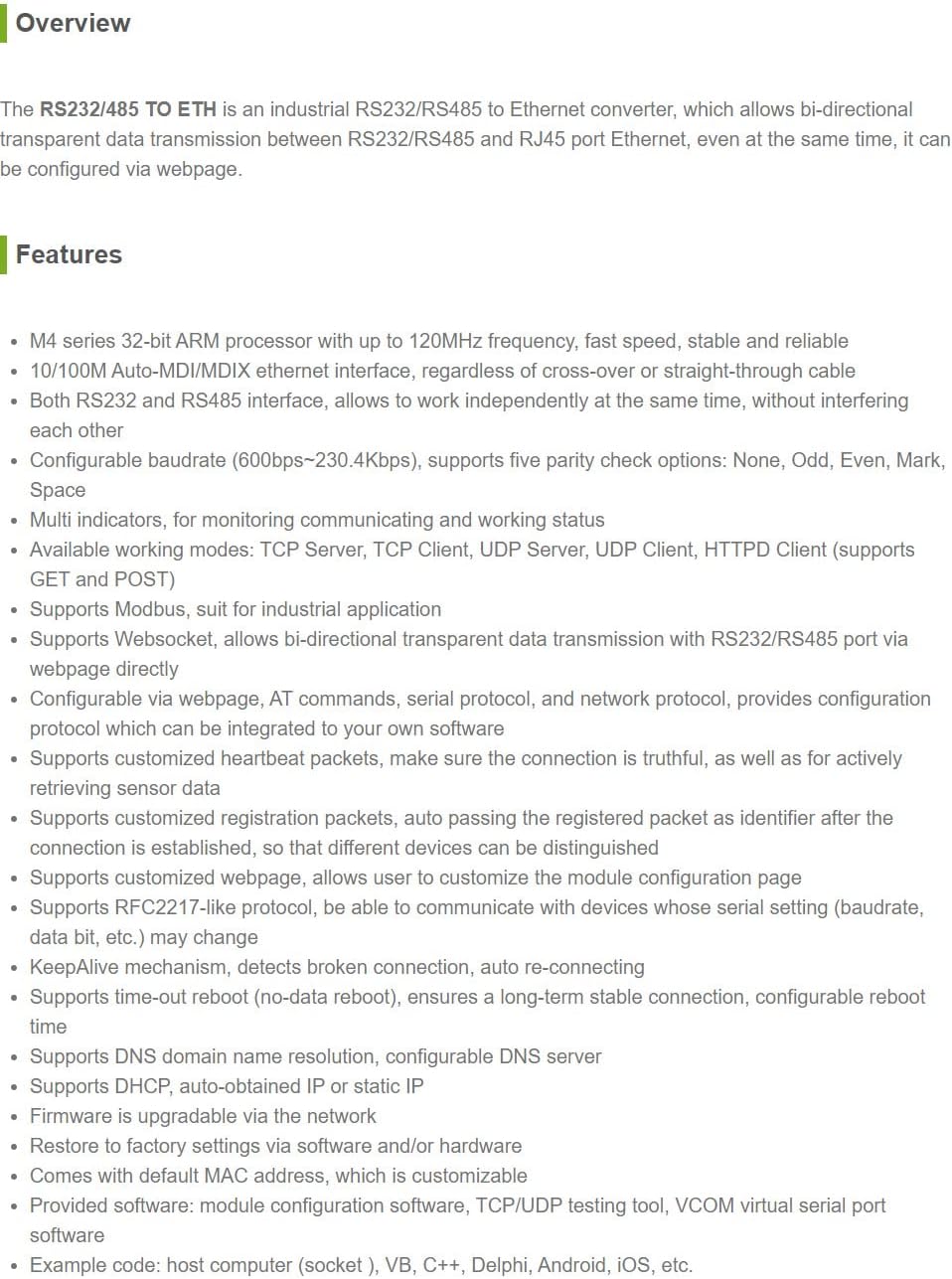

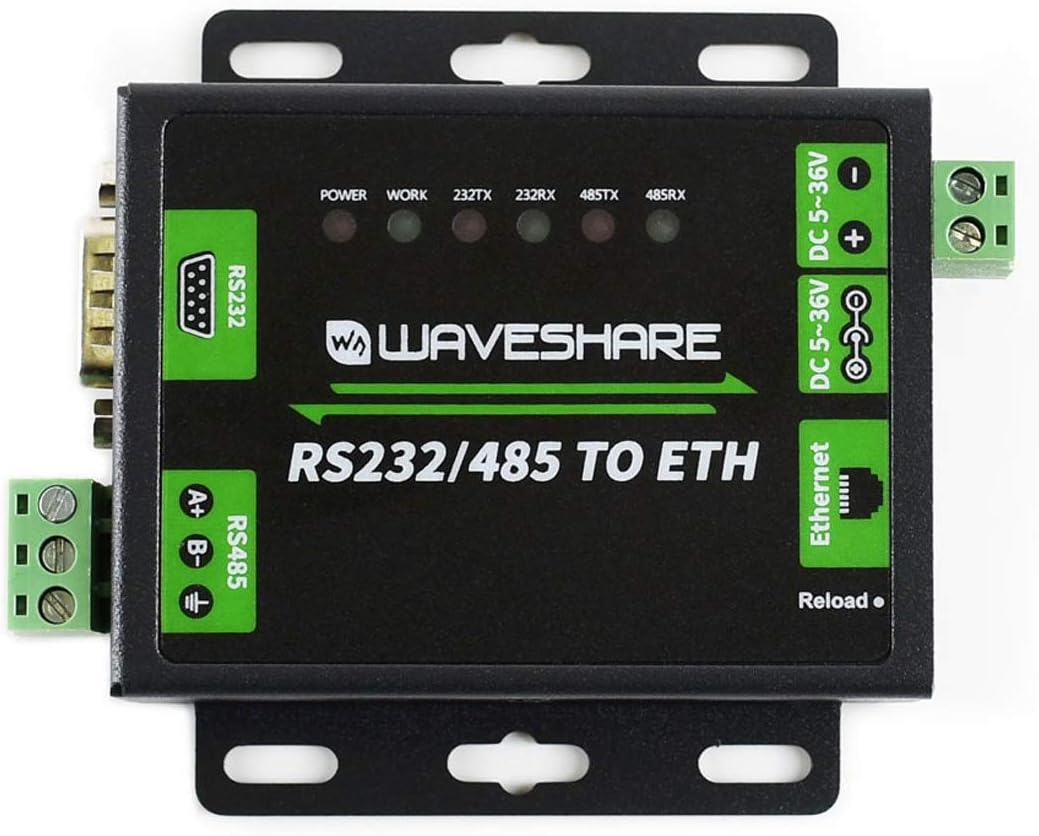

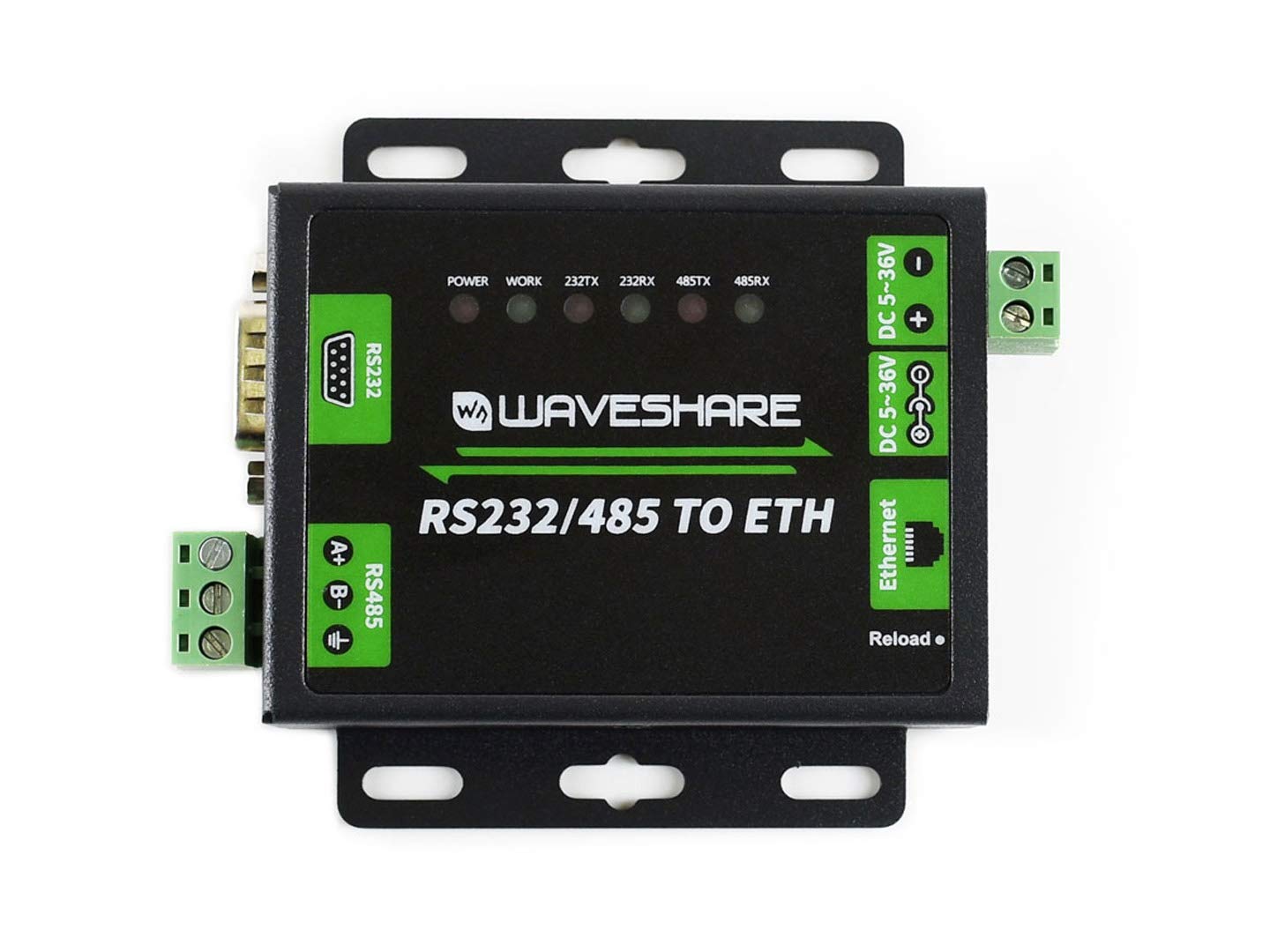

- This industrial RS232/RS485 to Ethernet converter supports Websocket, enables bi-directional transparent data transmission with RS232/RS485 port via webpage directly, and also can be configured via webpage, AT commands, serial protocol, and network

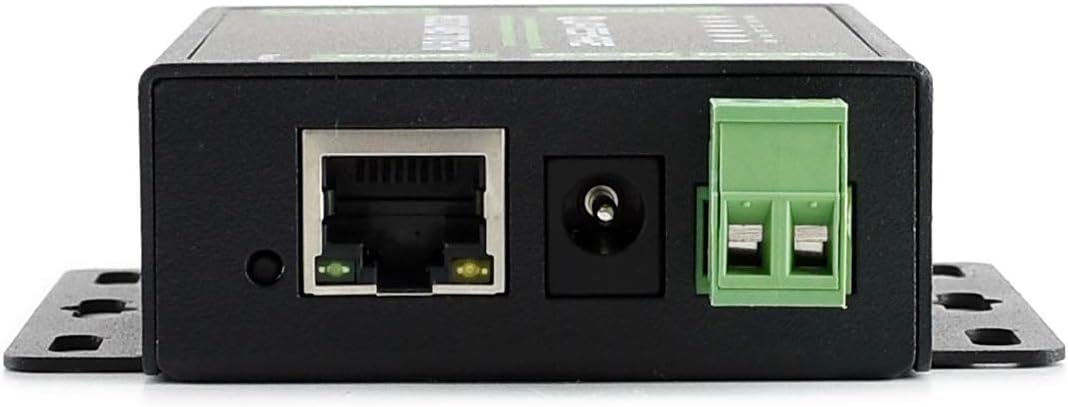

- M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable. 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable. Both RS232 and RS485 interface, allow to work independently at the
- Configurable baudrate (600bps~230.4Kbps), supports five parity check options (None/Odd/Even/Mark/Space). Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST). Multi indicators to monitor
- Supports Modbus, suit for industrial application. Supports customized heartbeat packets, registration packets, webpage. Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change.
- Firmware is upgradable via the network. Restore to factory settings via software and/or hardware. Comes with default MAC address, which is customizable. Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port
Der Artikel ist innerhalb weniger Tage lieferbar, die Lieferzeit beträgt hierbei 3-5 Werktage.
Die Ware wird kostenlos mit der Schweizerischen Post oder DPD versendet.
Rückgabe von Ware gemäss AGB
- Kostenlose Retouren innert 14 Tagen nach Erhalt
- Die Gutschrift erfolgt zu 100% der Kaufsumme
- zu Einzelheiten siehe Ziffer 8.0 und Ziffer 8.1. der AGB
