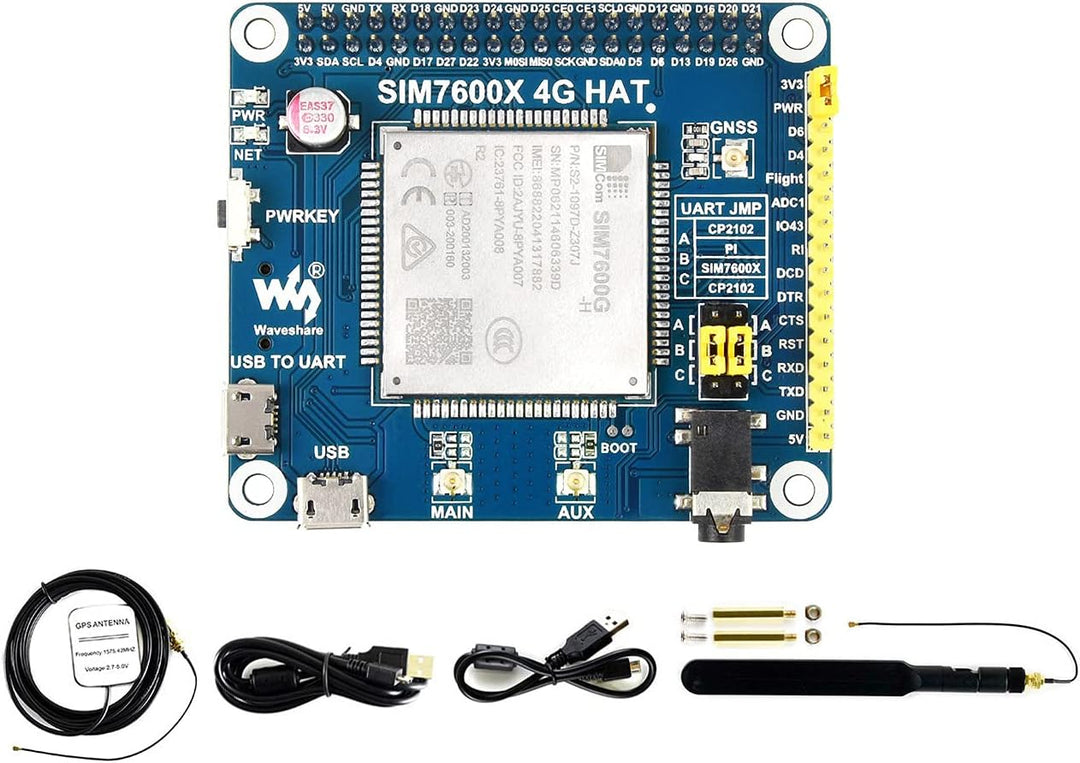

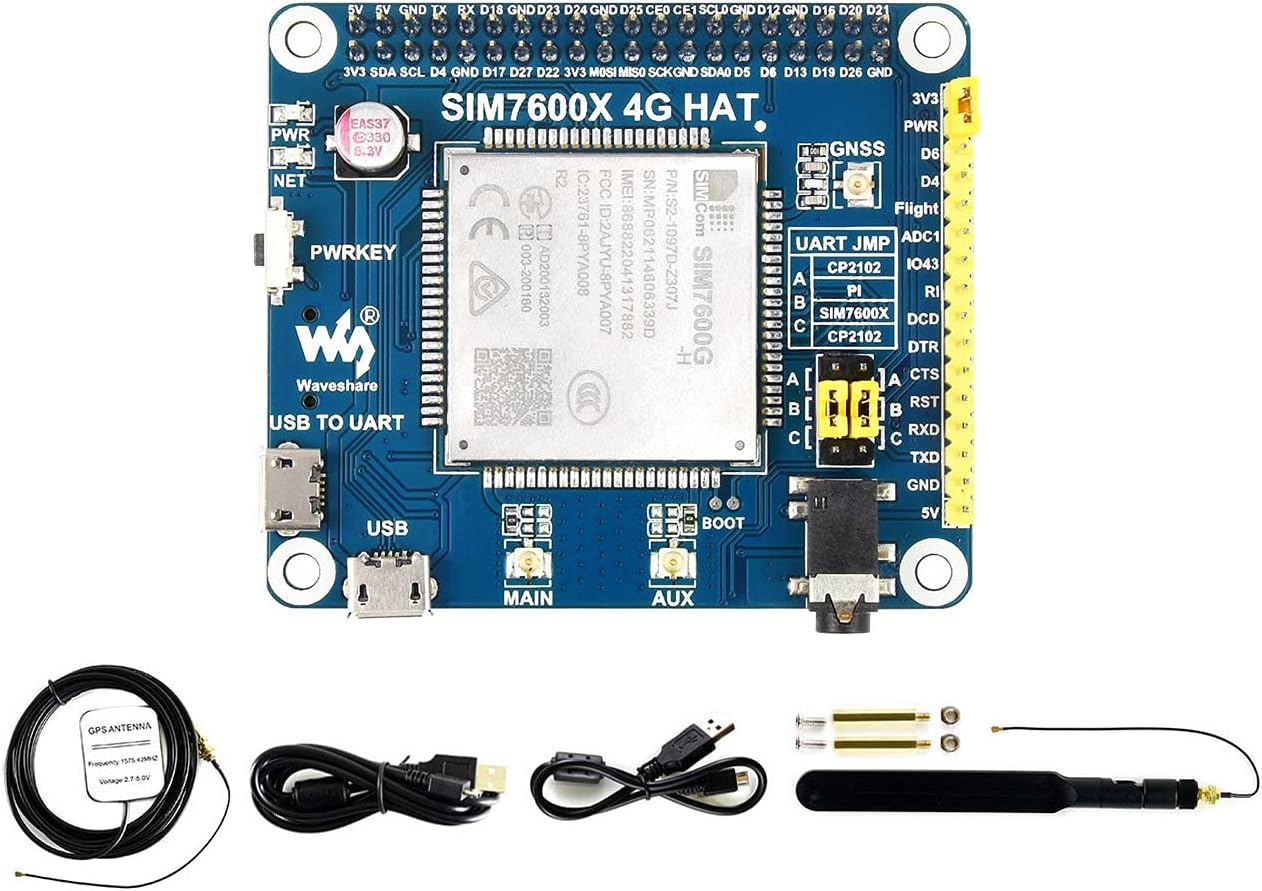

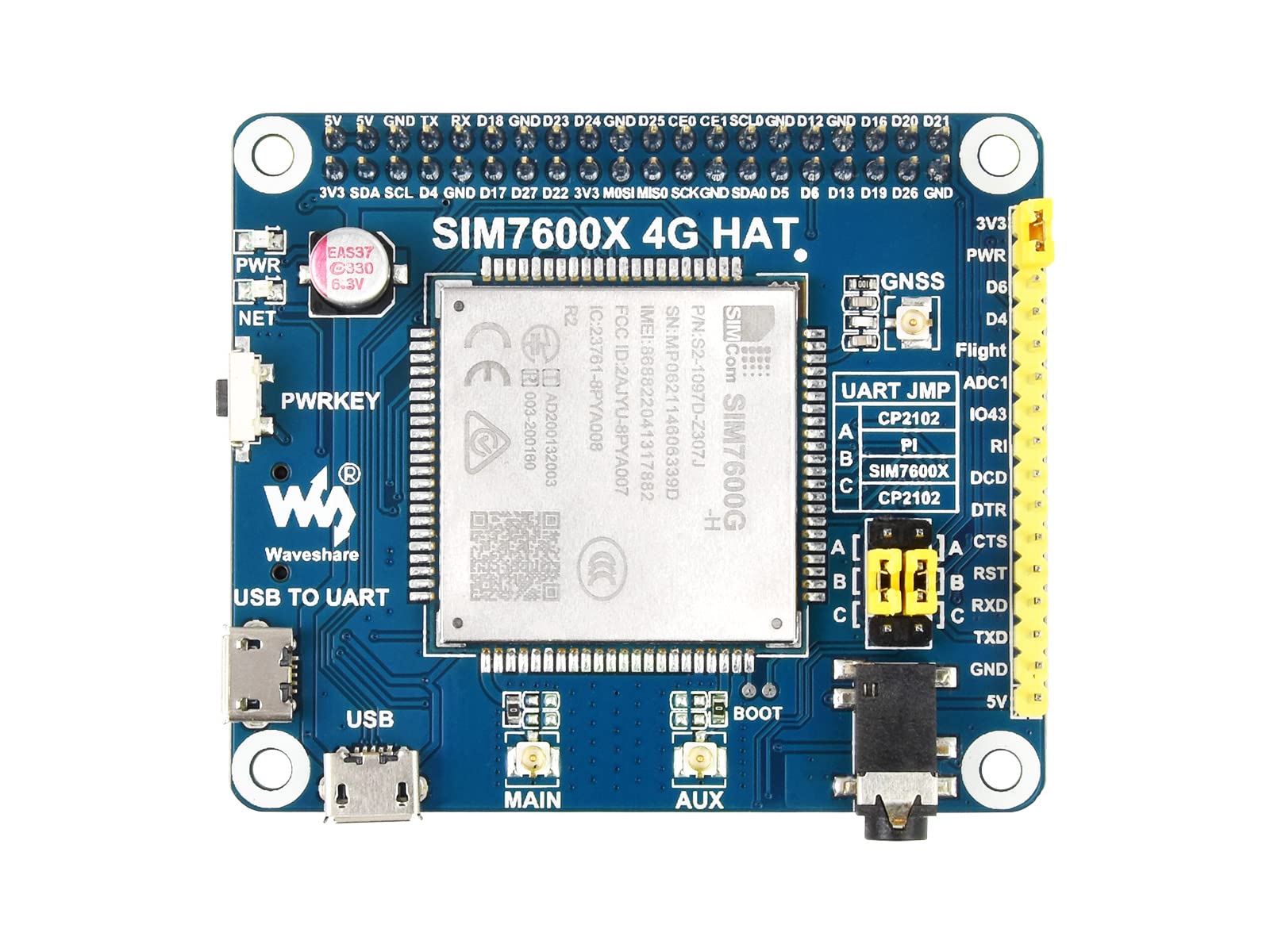

Waveshare 4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi Jetson Nano Based on SIM7600G-H Supports LTE C

Marke: Waveshare

Eigenschaften:

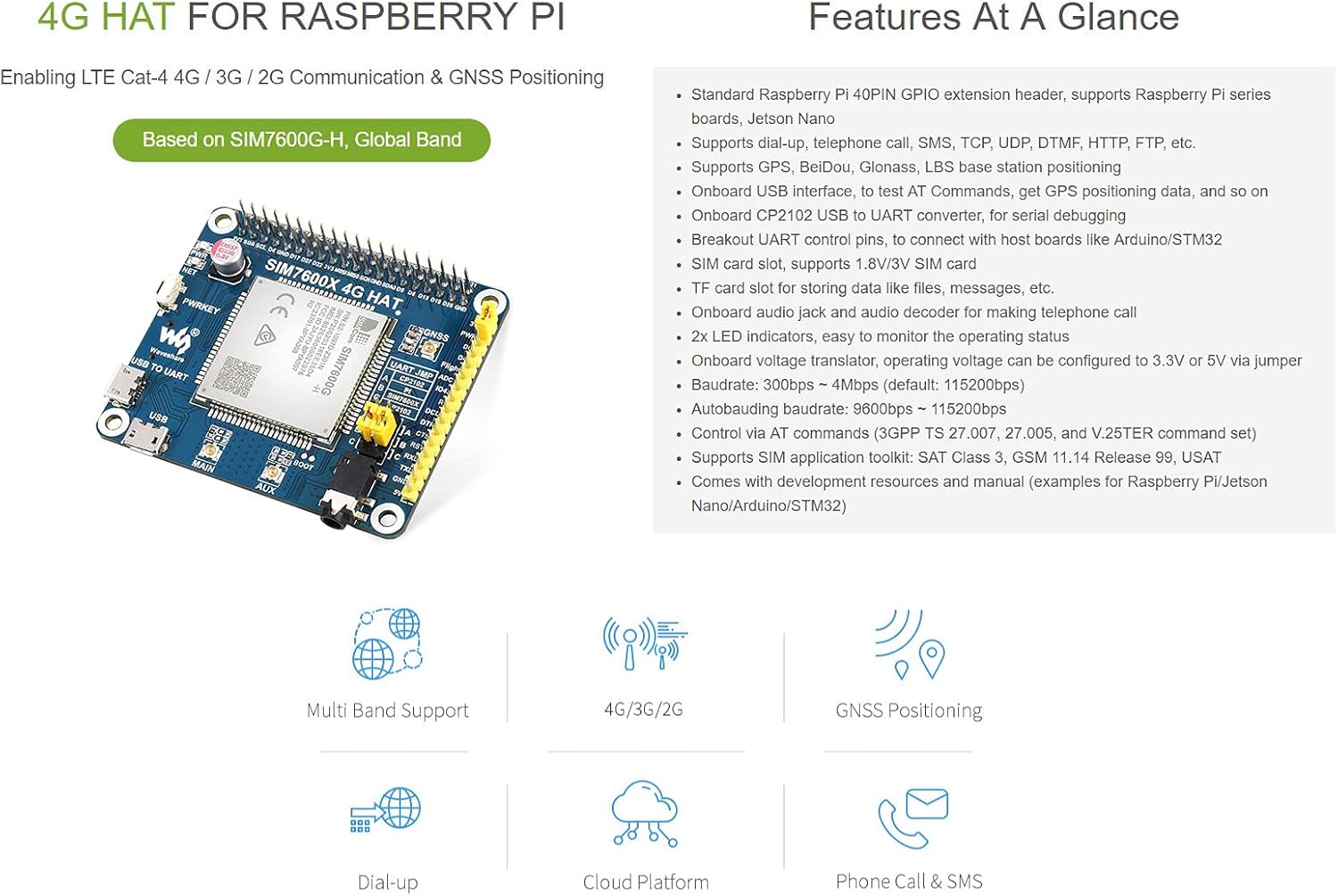

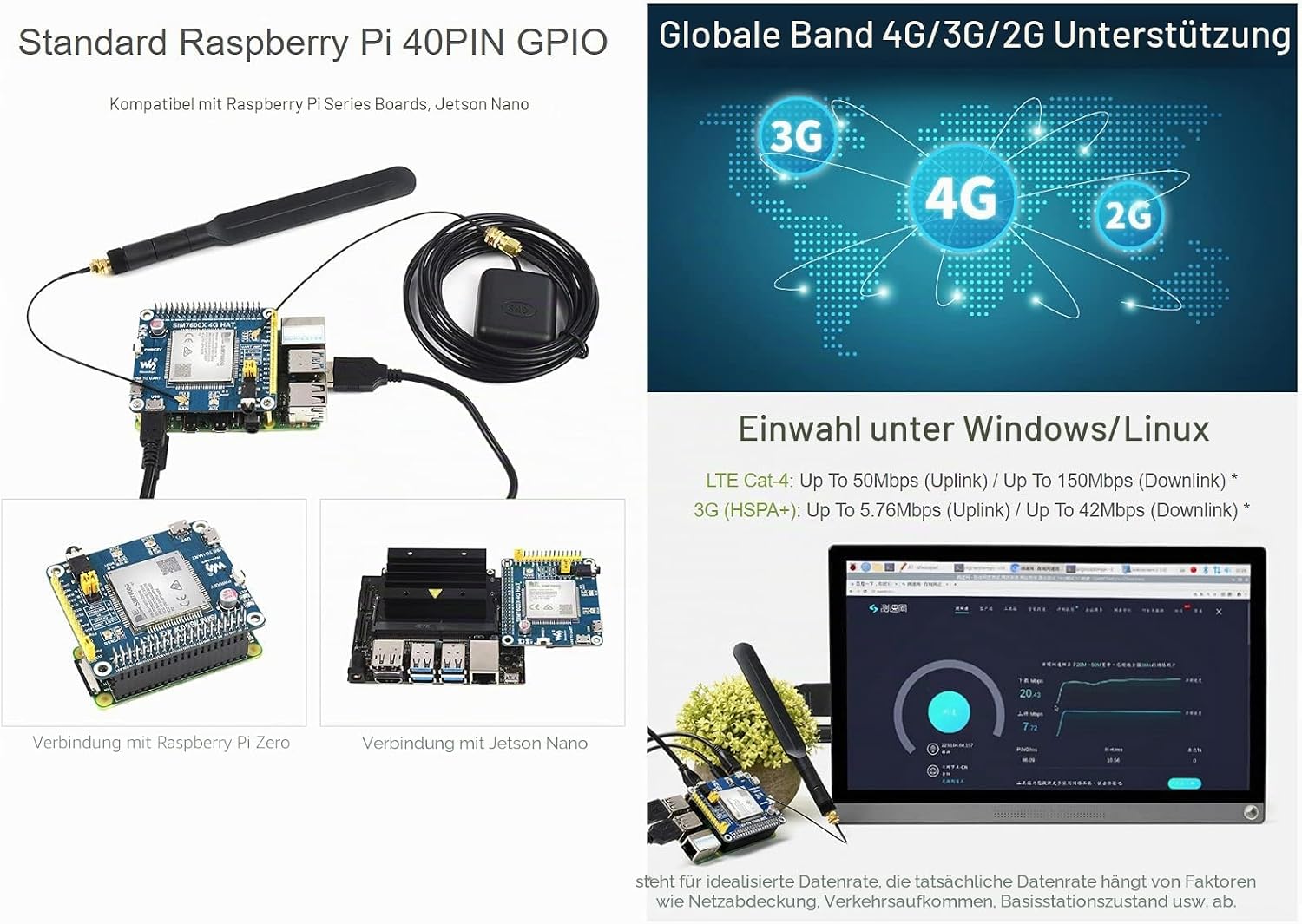

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.

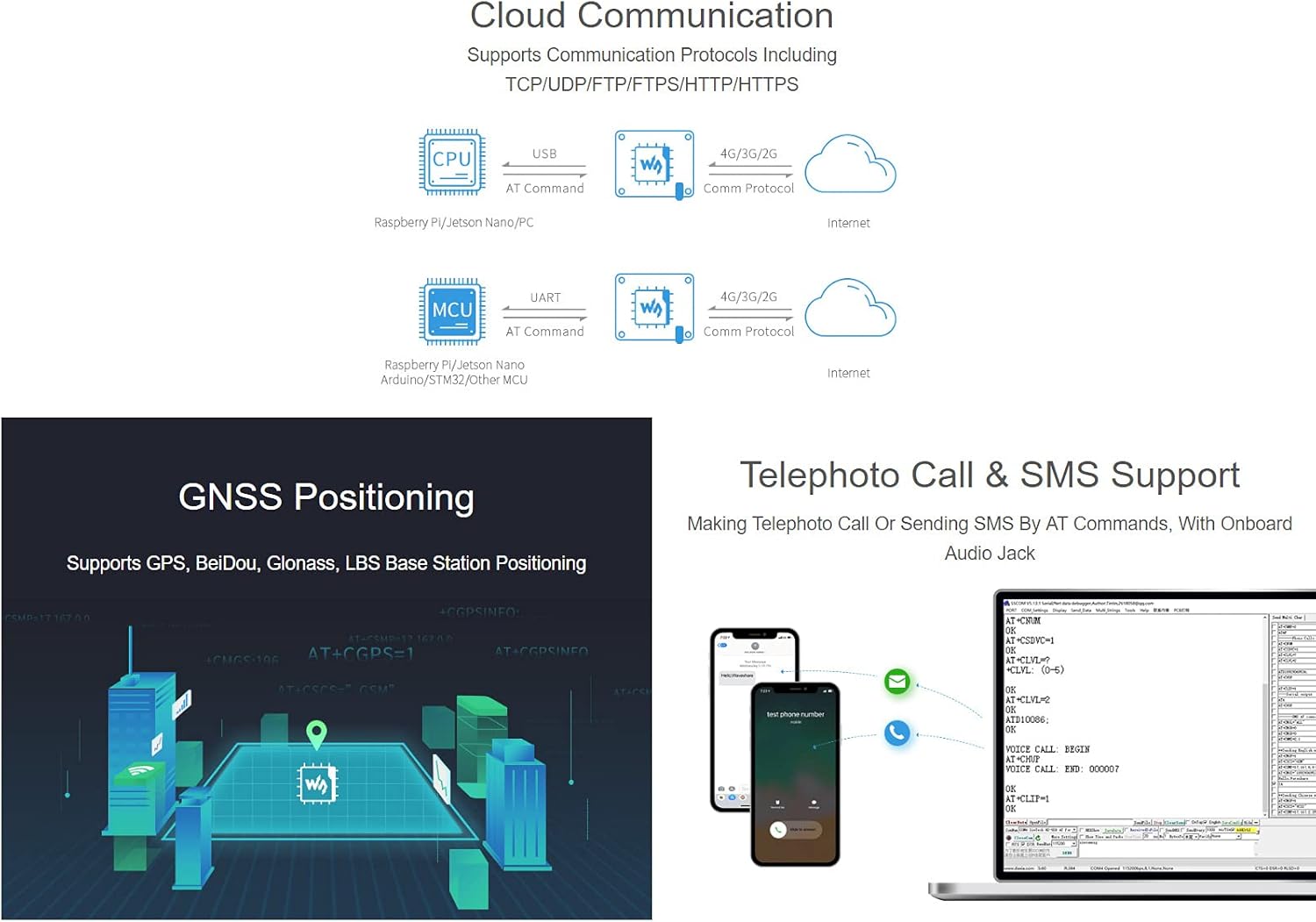

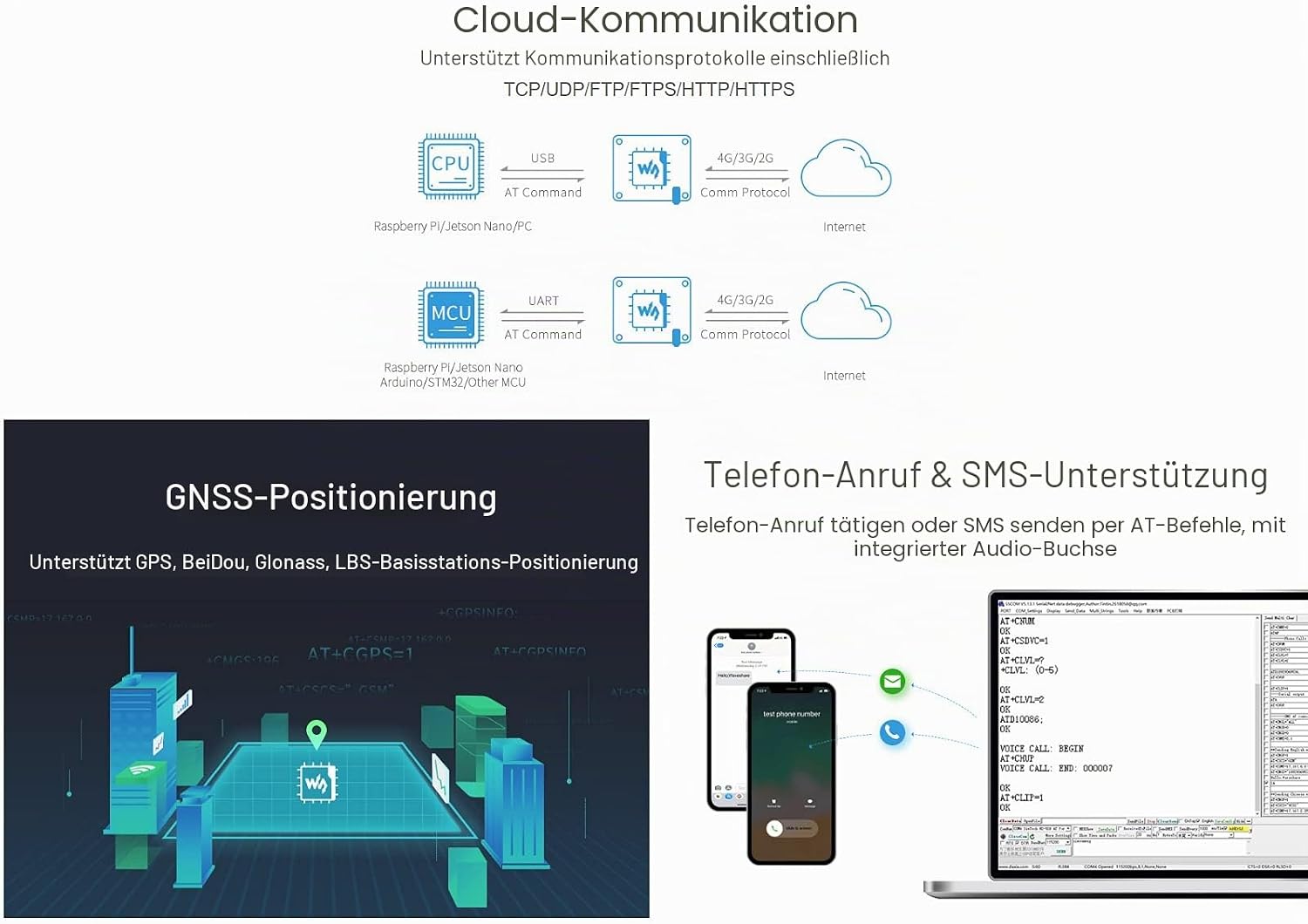

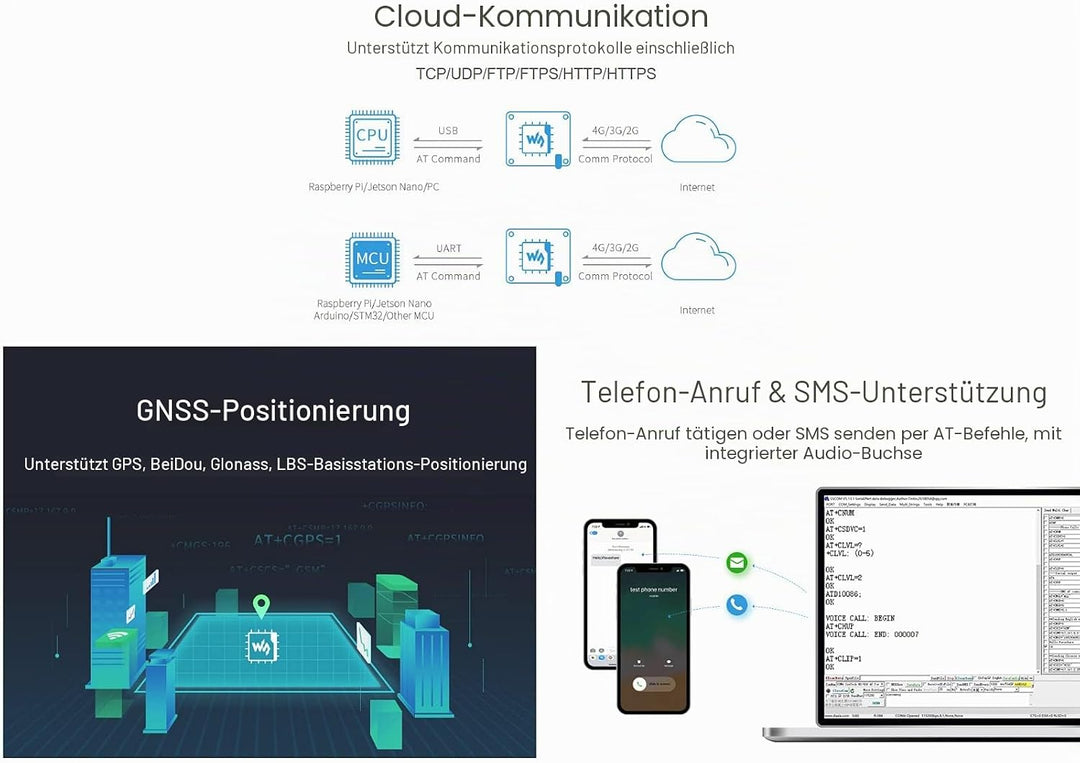

• Supports dial-up, telephone call, SMS, , mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.

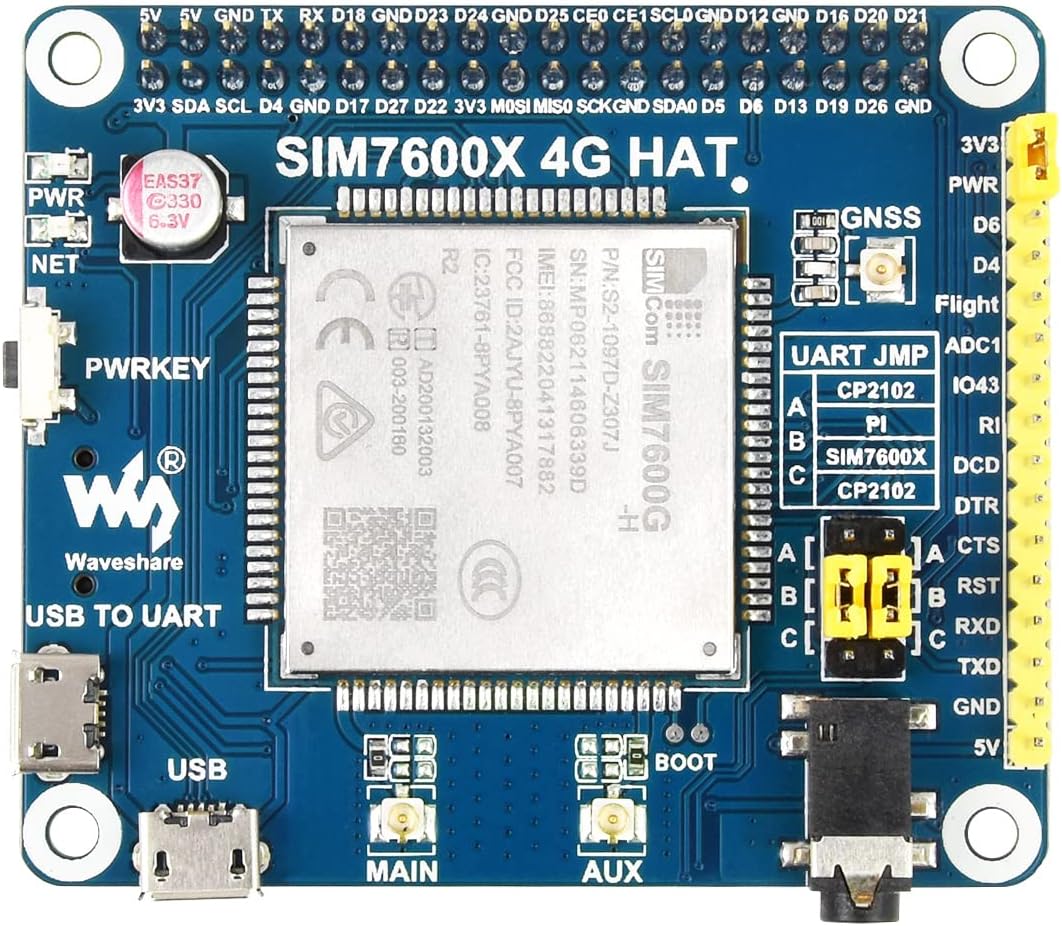

• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Onboard CP2102 USB to UART converter, for serial debugging. Onboard audio jack and audio decoder for making telephone call. Onboard voltage translator, operating voltage can

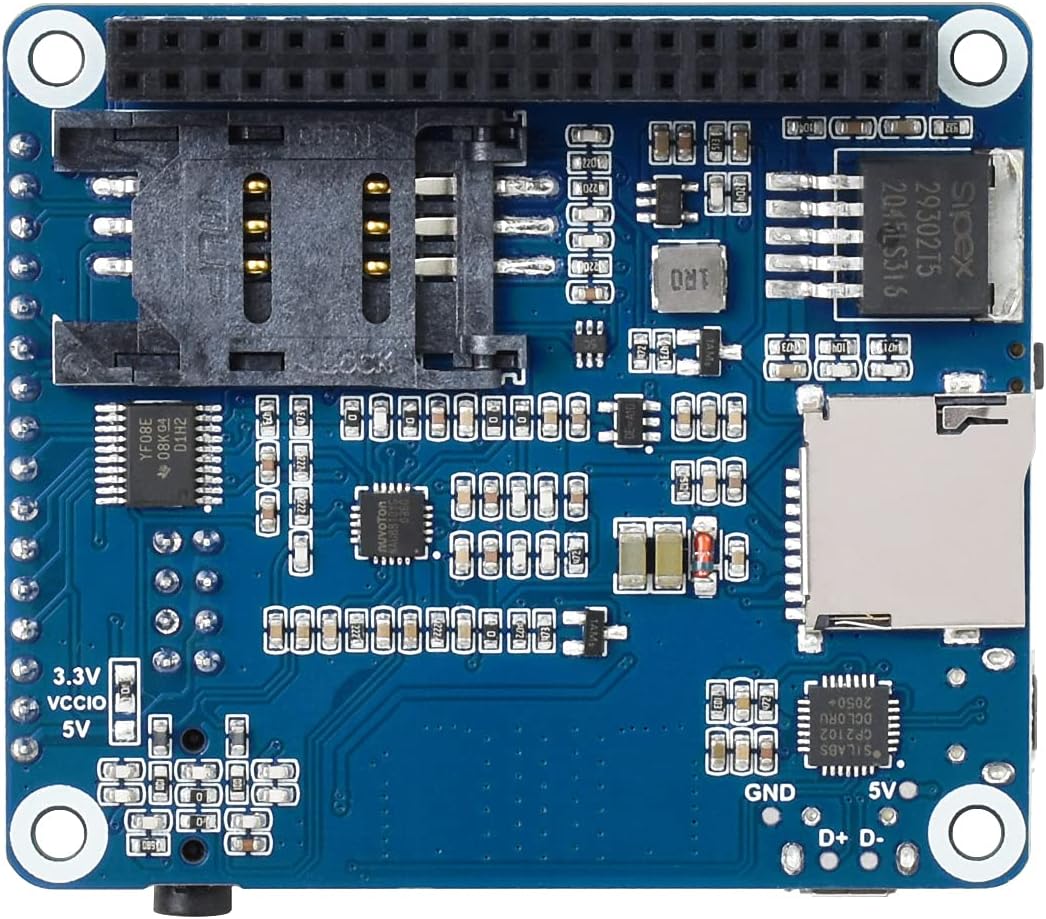

• Breakout UART control pins, to connect with host boards like Arduino/STM32. SIM card slot, supports 1.8V/3V SIM card. TF card slot for storing data like files, messages, etc. 2x LED indicators, easy to monitor the working status.
• Baudrate: 300bps ~ 4Mbps (default: 115200bps). Autobauding baudrate: 9600bps ~ 115200bps. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set).
